PRODUCT FEATURES
- Enhances radar returns with 12 intense blips, whereby the first blip represents the SARTs location
- Unit transmits through the 9.2-9.5 GHz band marine radar when interrogated by radar

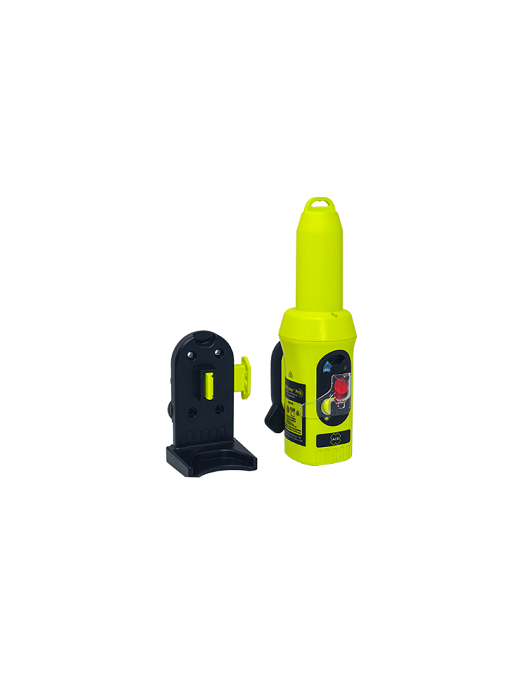

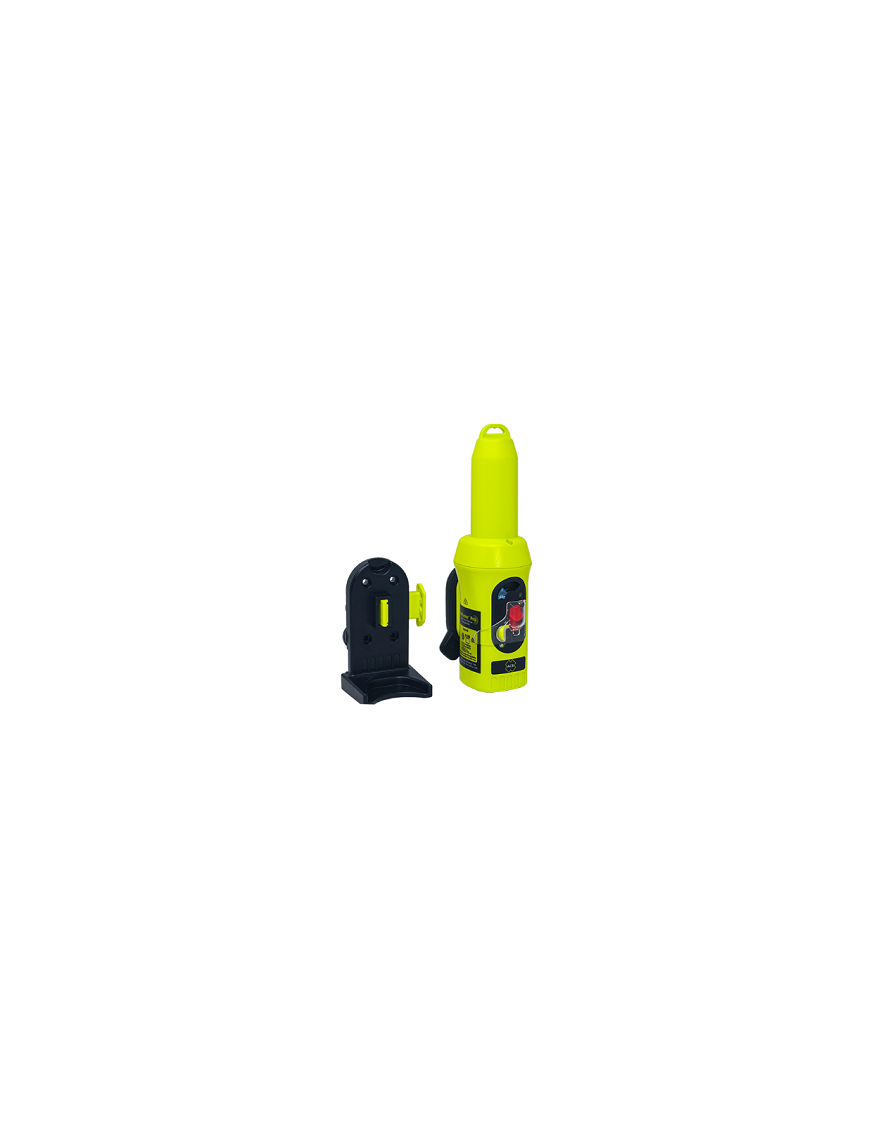

- Vessel mounting bracket and collapsible pole
- Compact 8.94 x 2.56 Inches (227 mm x 65 mm) unit easily packs into life raft
- Waterproof to 10 meters (33 ft)
- Non-Hazmat Lithium battery (5-year replacement life) operates for over 96 hours in standby mode plus an additional 12 operational hours
- Worldwide certifications; complies with IMO, MED, FCC and IEC standards
- Operational Life ? 96 hours in stand-by mode; in excess of 12 hours in operational mode
- Application: mandatory requirement for all vessels governed by GMDSS; any yacht or vessel carrying more than one life raft to accommodate crew and passengers
SPECIFICATIONS
Product Number: 2914
Size: 8.94 x 2.56 x 2.36? (227 x 65 x 60 mm) ? Easily packs into life raft
Weight: 15.5 oz (440 g)
Deployment: Manual
Operation: Break protective cover, slide and hold yellow switch to the left, slide the red switch into the down position.
Battery: Lithium/Iron Disulfide (Li/FeS2) Non-Hazardous (5 year replacement life)
Waterproof: > 10 meters (33 ft) @ +20?C
Certification: FCC, MED, Industry Canada, and Chinese CCS type approval certificate. Tested to IMO and IEC Standards.
Frequency: 9.2-9.5GHz
Output Power (EIRP): >26 dBm eirp
Temperature Range (operating): -20?C to +55?C
Temperature Range (storage): -30?C to +70?C
Operating Life: Standby: >96 Hours
Operating Life: Active: >12 Hours
Accessories: Optional Mounting Pole (P/N 2918)
Limited Warranty: 2 years
