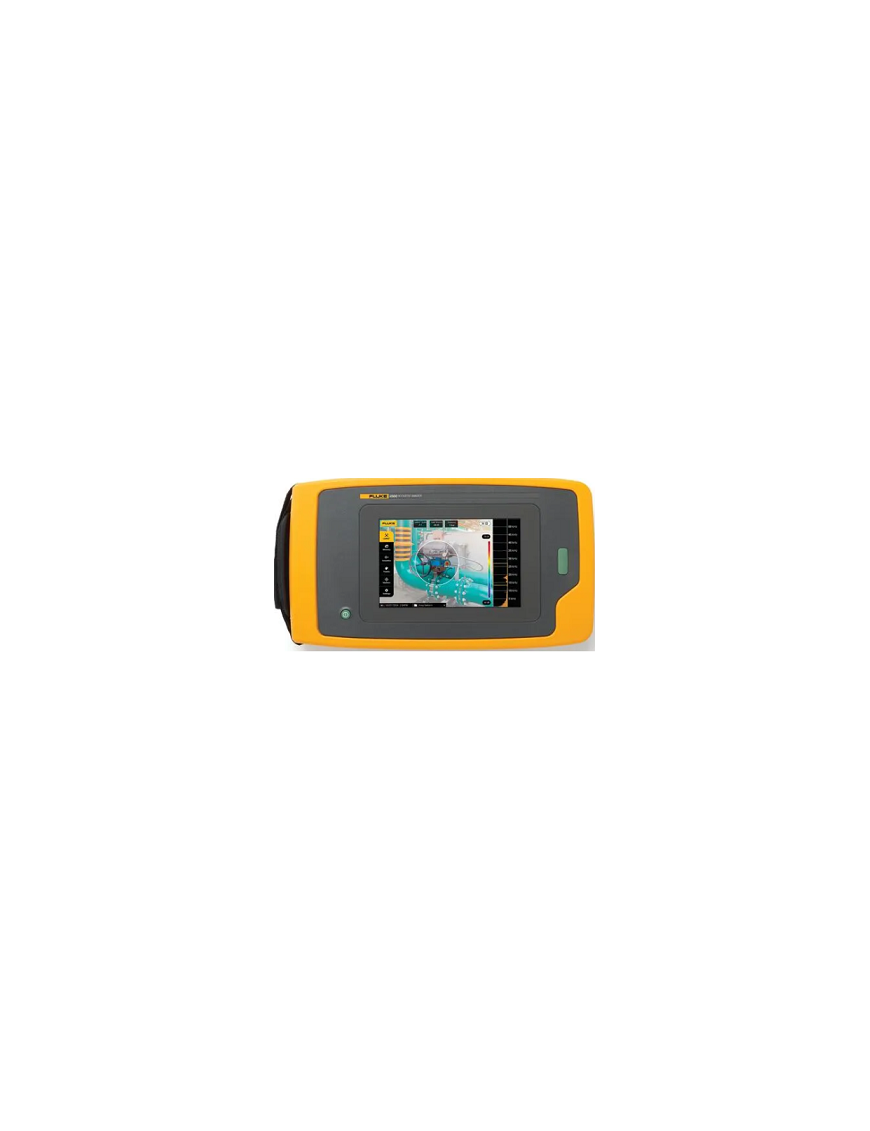

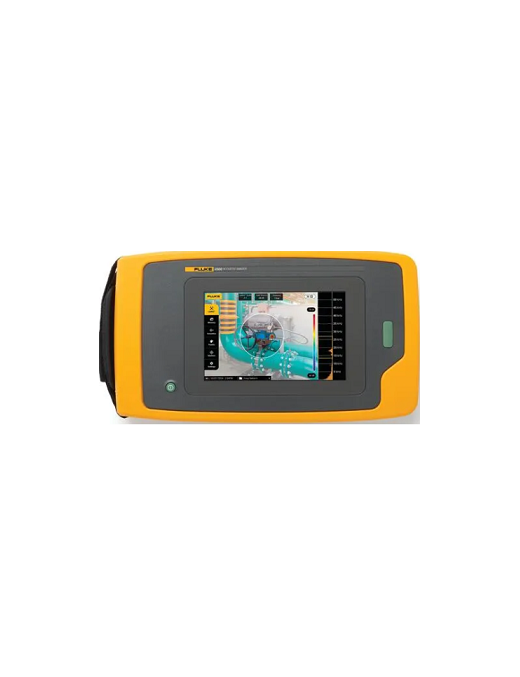

Fluke ii500 Acoustic Imager

The Fluke ii500 Acoustic Imager, equipped with LeakQ? technology, empowers maintenance teams to detect and locate gas leaks efficiently. Designed for ease of use, it requires no specialized training. Even during peak production periods, teams can effectively identify gas and vacuum leaks. The ii500's advanced acoustic leak detection technology isolates leak sound frequencies, making leaks visible even in noisy environments.


Security policy

(edit with the Customer Reassurance module)


Delivery policy

(edit with the Customer Reassurance module)


Return policy

(edit with the Customer Reassurance module)

PRODUCT FEATURES

  • Easy, fast, and safe visual detection of compressed gas leaks.
  • The 7" LCD touchscreen displays a SoundMap? over visual images, making it easier to locate leaks quickly.
  • Intuitive interface requires no training for maintenance teams.

SPECIFICATIONS

Tripod holder / connector: ?

USB: 1 x USB-C

Wireless: ?

Operating Temperature: -10 to 45 ?C (14 to 113 ?F)

Storage Temperature: -20 to 70 ?C (-4 to 158 ?F) without batteries installed

Relative humidity: 10 to 95 % non-condensing

Size (H x W x L): 186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches)

Weight (battery included): 2.1 kg (4.6 pounds)

Ingress Protection (IP): IP40

Warranty: 2 year

Fluke Premium Care: Premium Care Standard2

Self-diagnostic notification: Array-health test to identify when microphone array needs attention

Supported languages: Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Simplified Chinese, Spanish, Swedish, Traditional Chinese

RoHS compliant: Yes
