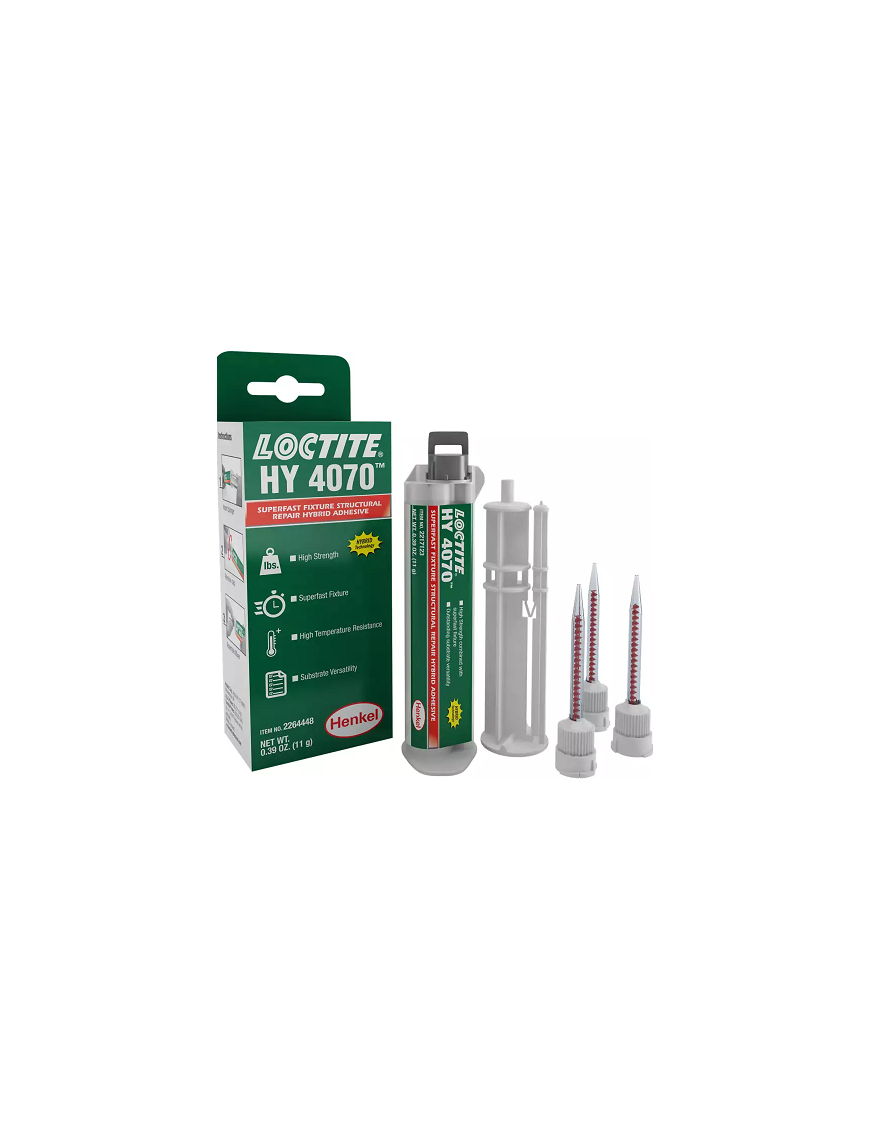

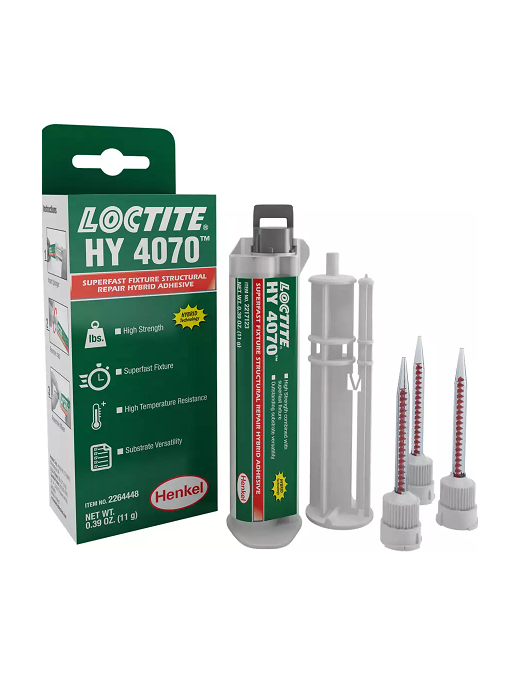

LOCTITE® HY 4070 Universal Bonder is a 2-part, fast-fixturing, cyanoacrylate/acrylic-hybrid adhesive that performs brilliantly on various substrates, including most plastics, rubbers and metals. It’s designed for the assembly of parts with bond gaps of up to 5 mm (0.2") and for applications where the complete cure of excess adhesive is a must. It has a gel consistency, which prevents adhesive flow even on vertical surfaces. Ideal for applications where temperature and moisture resistance are required. Best application results are achieved with use of the LOCTITE® cyanoacrylate mixing nozzle.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Product category: Structural adhesives
Technologies: Specialties, others Cyanoacrylate Acrylates, anaerobic cure
Application method: Dispense system
Applications: Bonding dissimilar materials; Bonding plastic; Bonding rubber; Construction; Direct bonding; Edge bonding; Interior repairs; Structural bonding
Cure type: Room temperature (ambient) cure; Two component mix
FEA (finite element analysis): Finite strain; Viscoelastic
Fixture time, Aluminum (etched), 0.5mm gap: < 60.0 sec.
Gap fill: 5.0 mm
Hardener: Color: Clear
Hardener: Viscosity, cone & plate, @ 25.0 °C: 1.0 mPa·s (cP) - 30.0 mPa·s (cP)
Mix ratio, by volume: 10 : 1
Mixed: Key characteristics: Cure speed: ultra fast cure; Gap filling; Moisture resistant; Multipurpose
Mixed: Operating temperature: -40.0 °C - 100.0 °C (-40.0 °F - 212.0 °F)
Number of components: 2 part
Physical form: Gel
Recommended for use with: Composite; Composite: advanced composites; Dry surface; Elastomer: highly filled elastomer; Epoxy; Fiberboard; Gel coat; Laminate; Metal; Non-gel coat; Painted surface; Phenolic; Plastic; Rubber; Thermoplastic; Thermoset; Urethane: cast urethane; Vinyl; Wood
Resin: Casson viscosity, cone & plate, @ 25.0 °C: 200.0 mPa·s (cP) - 1300.0 mPa·s (cP)
Resin: Color: Yellow
Shear strength, Steel (grit blasted): 25.0 N/mm² (3625.0 psi)
