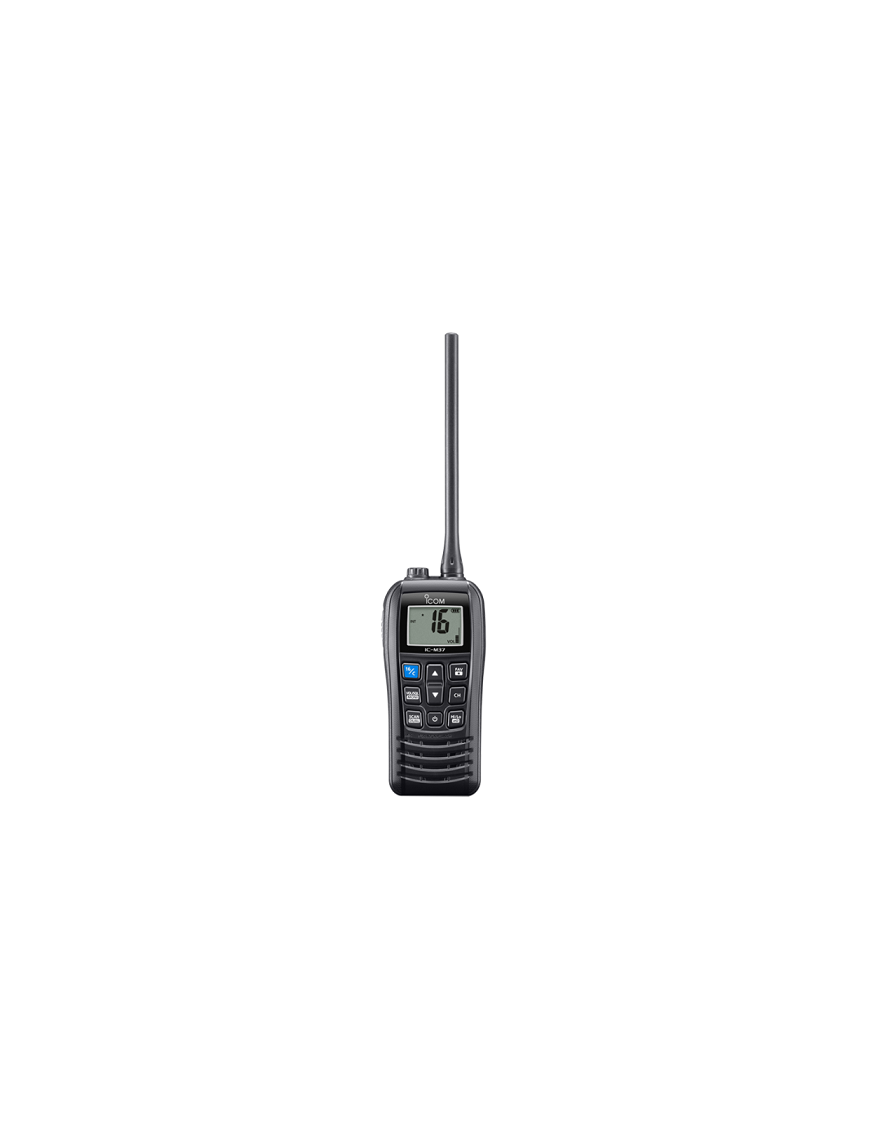

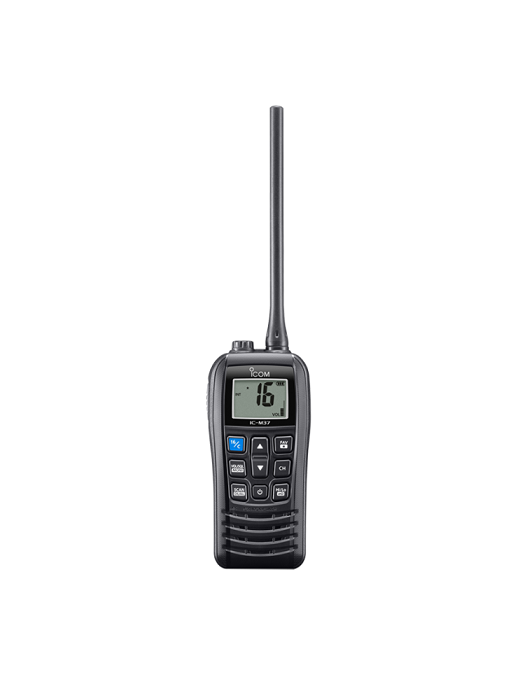

ICOM IC-M37E

PRODUCT FEATURES

• Loud Audio Output
• 12 Hours Long Time Operation
• IP57 Dust-tight and Waterproof Protection
• Float'n Flash™ Function
• AquaQuake™ Water Draining Function
• 6 W* RF Output Power
• Dualwatch and Tri-watch Functions
• Monitor Function
• Low Battery Alert function notifies you of low battery level
• Voice Loud and Mute function enables to temporary maximize/mute the volume
• Channel history function stores the last five channels used for easy recall
• Various Scan functions (normal/priority)
• Favorite Channel function
• BP-296 user replaceable Li-ion battery pack supplied
• Weather channels with Weather Alert function (AUS Version)
• Lock function
• Power Save function
• Backlight function for night time opeartion
• LCD contrast selection

SPECIFICATIONS

Frequency range

TX: 156.000–161.450 MHz

RX: 156.000–163.425 MHz

Usable channel groups: INT, ATIS*, USA*Available depending on version

Type of emission: 16K0G3E

Current drain(at 3.7 V DC)

TX: 2.75 A/1.0 A (6.0 W/1.0 W output)

RX: 0.4 A/0.2 A (Max. audio. Int. SP/Ext. SP)

Operating temperature range: –15°C to +55°C

Antenna impedance: 50 Ω

Dimensions (W×H×D)(Projections not included): 59.7 × 140.5 × 38.7 mm

Weight (approximate): 293 g(with BP-296, antenna and belt clip)
