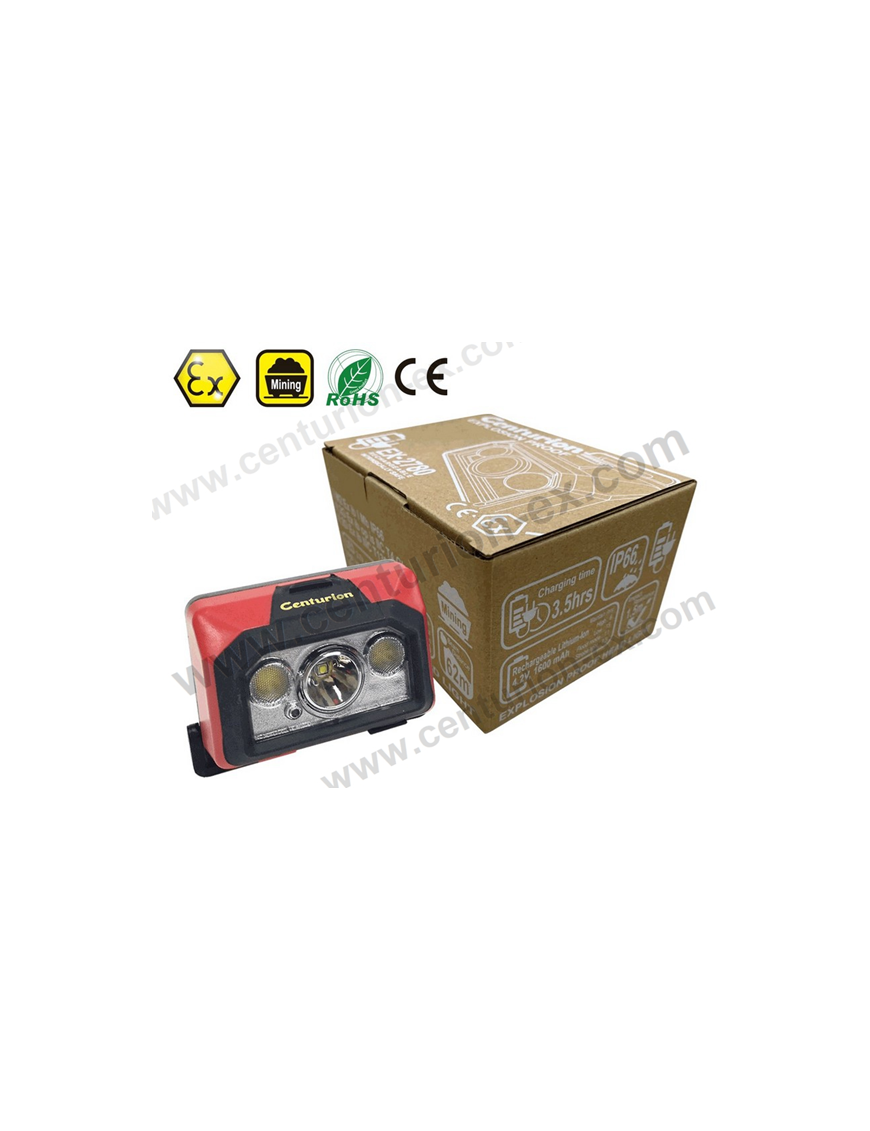

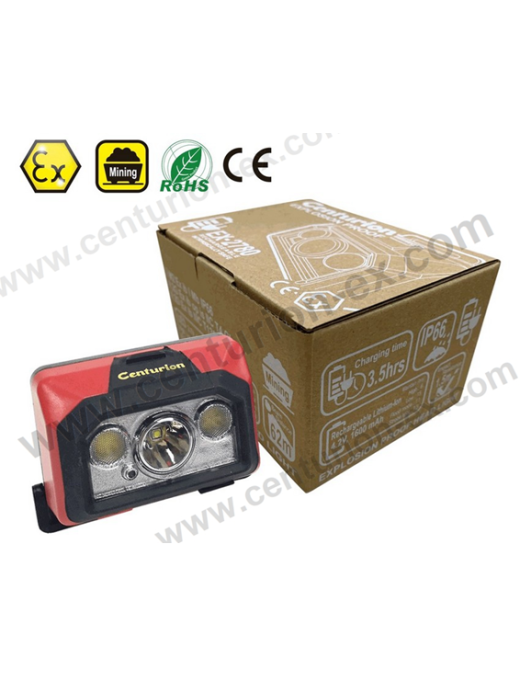

EX-2780 ATEX Intrinsically Safe Rechargeable Head Light

ATEX Intrinsically Safe Rechargeable Head Light

Model: EX-2780

Technical Detail:

This EX-2780 Intrinsically Safe Head Light (Rechargeable) is ATEX Directive certified for safe use in hazardous locations in zones 1 & 2 and zones 21, 22. IP66 waterproof and dustproof.

Hands-free illumination in every situation, a unique non-slip elastic strap included for head or attached to a hard-hats or fire helmets. The headlight's tilt-adjustment mechanism allows adjusting the light angle, rotatable head (maximum adjustable angle of 72 degrees) to meet the visual needs. Customized optics provide a wide spot beam for hands-free tasks. Head Light provides four output modes, including High, Low, Flood mode & Strobe light.

 The supplied charger LC-2780 includes European 2-pin plugs and cigarette plugs for use in the main voltage AC100-240V and low voltages of DC12-24V to suit different environments.

 Ex Mark:   I M2 Ex ib I Mb

                II 2G Ex ib op is IIC T4 Gb

                II 2D Ex ib IIIC T135°C Db

-       Type of Protection: 'ib' Intrinsically Safe

-       Areas of Classification (Gases): Zone 1 and 2, Gas Groups: IIA, IIB, and IIC

-       Areas of Classification (Dusts): Zone 21 and 22, Dust Groups: IIIA, IIIB, and IIIC

-       Temperature Classification (Gases / Dusts): T4 / 135°C

-       Ambient Temperature: -20°C~+40°C

-       Beam Type: Spot / Flood

-       Beam Distance: 62 Meters

-       Output Mode: High / Low / Flood / Strobe Light

-       Output: 135 Lumens (High) / 45 Lumens (Low) / 85 Lumens (Flood) / 135 Lumens (Strobe light)

                    (all of the above are the effective lumens)

-       Light Duration: 6 Hours (High) / 15 Hours (Low) / 11 Hours (Flood) / 7.5 Hours (Strobe Light)

-       Light Source Type: High power LED bulb

-       Power: 3.7V 1.8W

-       Power Source: Rechargeable battery, Lithium-ion 3.7V 1,600mAh

-       Power Indicator: Green – Battery ≥ 50% / Blue – Battery < 50% / Red – Battery < 25% / Red in Flashing – Battery < 10% / When battery lower than 10%, the

         headlight switch to a low mode automatic for power saving.

-       Ingress Protection: IP66

-       Impact Resistant: 2 Meters

-       Compatible Charger: LC-2780

-       Charger Input: AC 100-240V, DC 12-24V

-       Output: DV 5V 2A (10W)

-       Charging Time: 3.5 Hours

-       Product Weight: 170g (including battery)

-       Dimension: 87*61*49mm

-       Packing: 60 pieces per carton, size: 49*33*42cm
