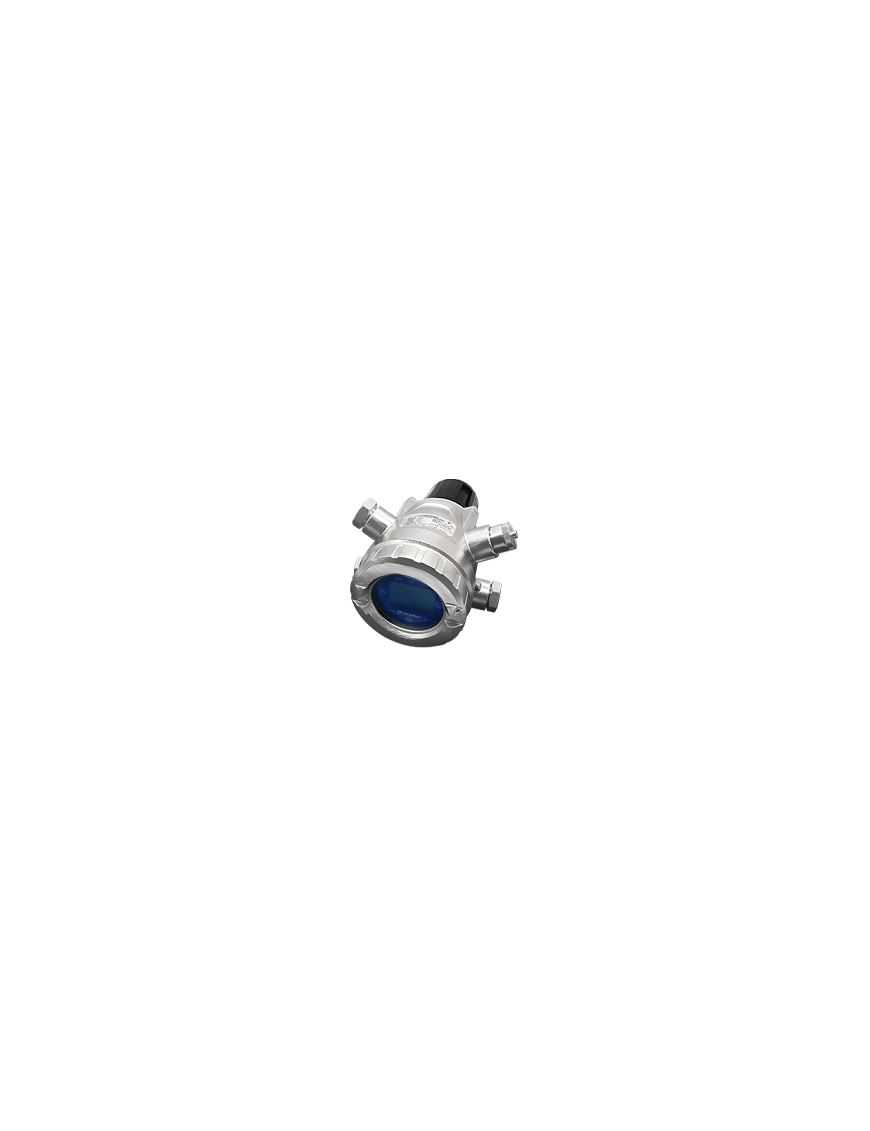

GTYQ-WD6200IRII Fixed Gas Detector is designed for detecting flammable gas. It features a double beam IR sensor that effectively reduce the zero drift to the minimum, and extends the maintenance intervals. The detector enjoys better gas selectivity, stability, longer life span, and wider application over detector with regular IR sensor. It shows not only the concentration of gas but also diagnostic result of the unit itself through the LCD screen and can be connected to the control panel with a standard 4-20mA analog communication.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Petroleum and petrochemical industry refineries, LPG/LNG tanking plants, gas energy industry, gas plants, offshore oil/gas platforms, etc.
Measuring gas: CH4, C3H8, C4H10
Measuring range: 0-100%LEL
Measuring accuracy: ±3%LEL
Sensor life: ≥5 years
Measuring type: Diffuse naturally
Response time: ≤30s
Signal output: 4-20mA / Hart
Alarm output signal: 2 programmable relays
Cable / distance: 1.5 MM2, 3 wire, shielded,1000m (maximum)
Conduit connection: NPT3/4
Mounting type: Wall mounted
Working temperature: -40℃~+70℃
Working humidity: ≤95%RH (no condensation)
Operation voltage: DC24V±25%
Consumption: ≤6.5W
Ingress Protection: IP66 / IP67
Explosive proof: Ex d IIC T6 Gb
Housing material: 316L
Dimension and weight: 243×158×127mm, about 5.2kg
