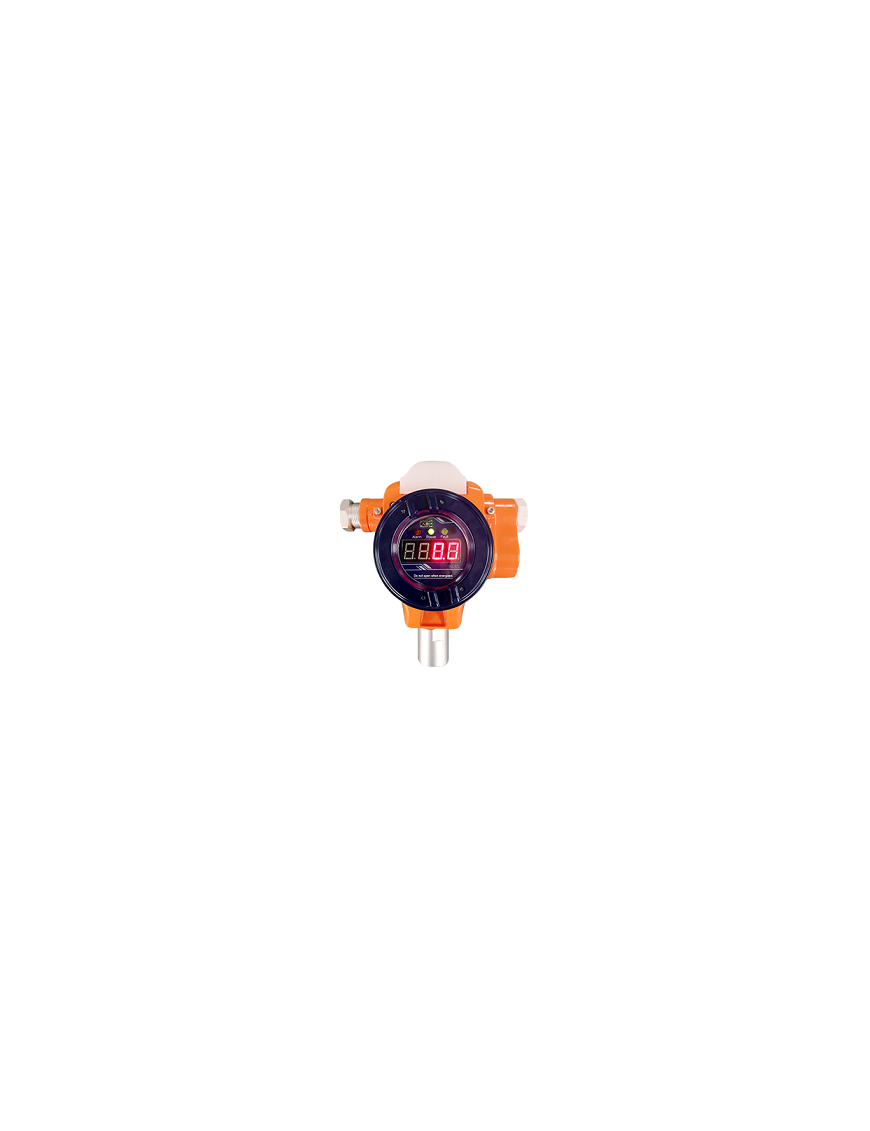

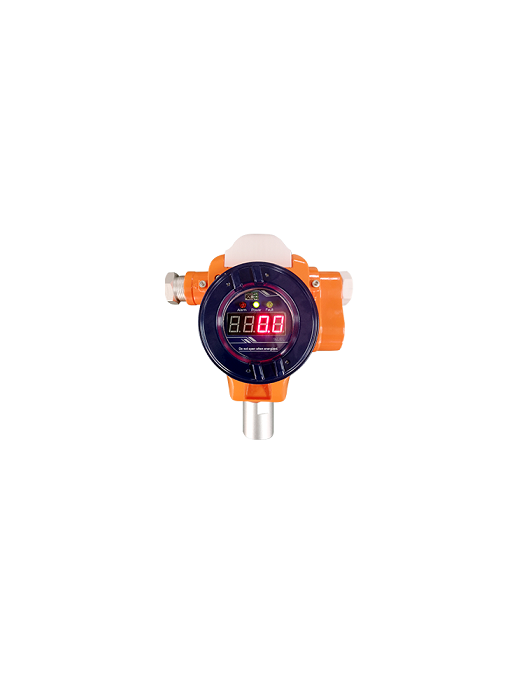

HANWEI CXF Standalone Flammable Gas Detector
  • New

HANWEI CXF Standalone Flammable Gas Detector

CXF is a fixed flammable gas detector for industrial and commercial purposes, which is a stand-alone detector. The detector is mainly used in small restaurants, shopping malls, underground integrated pipe corridors and other environments where gas may leak. When the gas concentration in the environment exceeds the set concentration, it will alarm through the indicator light and buzzer, and drive the solenoid valve at the same time, fans and other equipment to protect the personal and property safety of users

₦0.00
Tax excluded
Quantity
Buy Now
equalizer cached Add to Compare favorite_border cached Add to Wishlist
weight guide

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

PRODUCT FEATURES

  • Compact structure, easy to install
  • Low cost
  • Explosive proof
  • Stable and reliable
  • Convenient operation and maintenance
  • Flexible wiring

APPLOICATIONS

Mainly used in small restaurants, shopping malls, underground integrated pipe corridors and other environments where flammable gas may leak.

SPECIFICATIONS

Sensor type: Catalytic sensor

Sensor lifespan: 3 years

Detection range: 0-100%LEL

Sampling method: Diffuse naturally

Preset low alarm: 20%LEL

Preset high alarm: 50%LEL

Application area: Indoor environment

Power supply: AC220V±44V

Resolution: 1%LEL

Consumption: ≤3W

Output: 2 dry relays (3A@DC30V)

Alarm error: ±3%LEL

Working method: Continuous monitoring

Response time: T90≤20s (CH4)

Operation: By IR remote controller

Indication: LED indicators

Ex grade: Ex d IIC T6 Gb

Display: LCD screen

IP class: IP66

Working temp: -10-55℃

Housing material: Aluminium alloy

Humidity: ≤95%RH

Dimension: 168.4×193.4×82.1mm

Ambient pressure: 88KPa to 106KPa

Weight: About 1.2kg

Cable entry: NPG3/4
