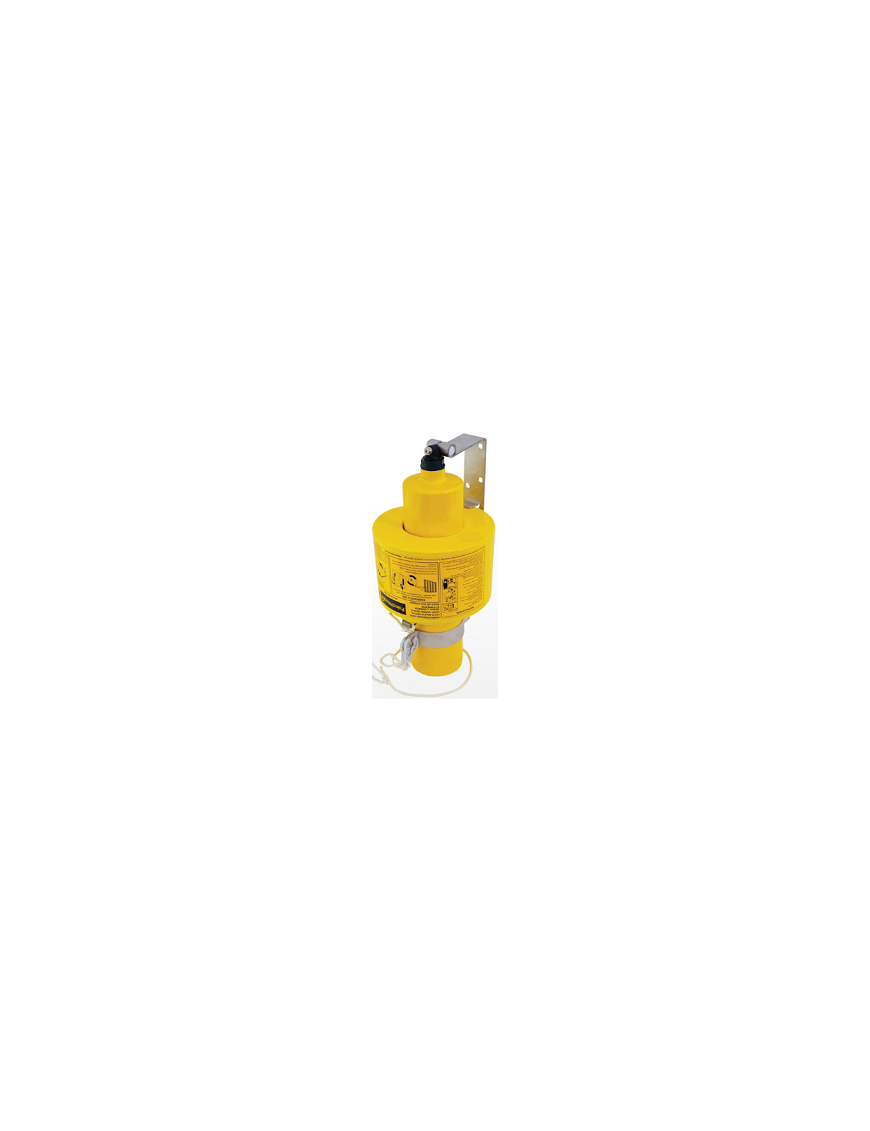

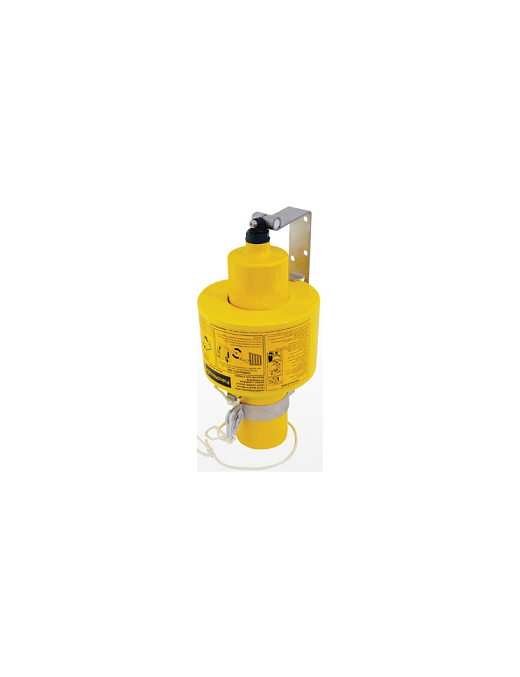

15 minute orange smoke Man Overboard day time Lifebuoy marker. Identical to Manoverboard MK9 Light & Smoke Signal - but without the lighting system. This version is required for USA and Japanese flag vessels.
₦0.00
Tax excluded
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
One is required to be mounted on each Bridgewing in its stainless steel bracket. It can be positioned upto 60m above sea level (SOLAS only requires 30m). Ideal for high freeboard vessels or rigs. Automatically deployed on release of the attached Lifebuoy. Can also be manually deployed. Safe for use on oil or petrol covered water. Day time signal which is attached to a 4 Kg lifebouy (not supplied) and used in an emergency to mark the position of a man overboard.
Storage Requirements
Ideally should be stored in a dry, easily accessed location at ambient temperature
Disposal
Hazardous item! Dispose of responsibly through approved channels in accordance with local regulations.
SPECIFICATIONS
Height: 375mm (14.76 in)
Diameter: 183mm (7.20 in)
Weight: 3.3 kg (7.27 lb.)
Weight – including bracket and angles: 3.85 kg (8.5 lb.)
Net Explosive Content: 1.287 kg (2.84 lb)
Lamps (bulbs): 2 x 3.6v 2.0A
Temperature range: -30°C to +65°C
Burning time: 15 minutes
Colour of light: white
Duration: 2 candela for 2 hours
Use with lifebuoy weighing:
4.0 kg (8.82 lb.)
Attach to lifebuoy with line:
4m (13ft) long,
9.5mm (0.37 in) diameter
STANDARDS
Conforms to SOLAS 74 as amended. IMO Resolution MSC 81 (70) part 1. MED: Manoverboard – BGV 422.013, Buoysmoke- BGV 422.014. BAM-P1-0596, 0589-P1-0619.
The Pains Wessex Manoverboard MK9 Compact Lifebuoy Marker is normally mounted on a ship's bridge wing attached to a 4 kg lifebuoy. It is...
