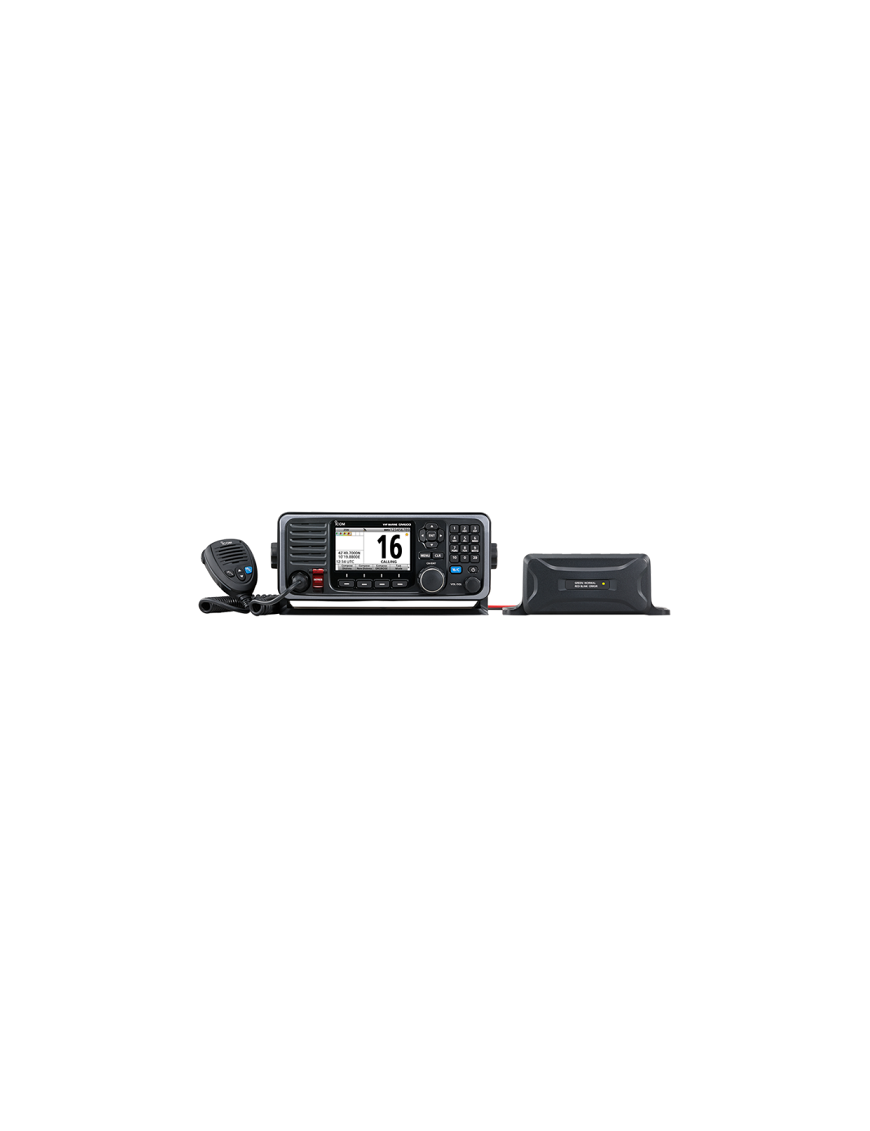

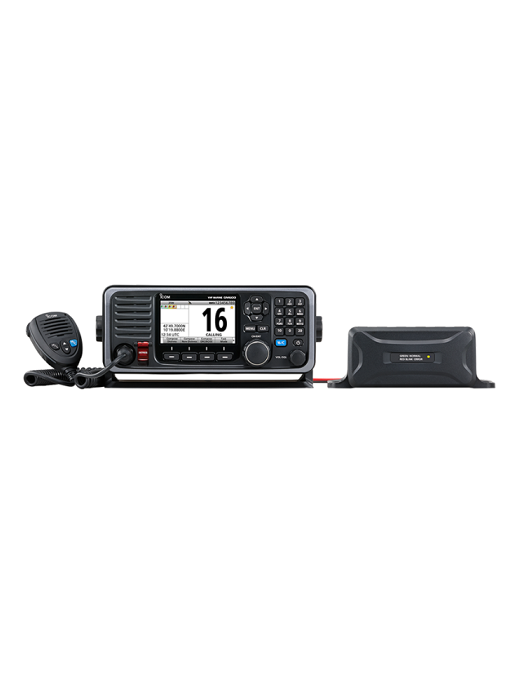

The GM600 is a GMDSS (Global Maritime Distress and Safety System) VHF radiotelephone which can be used as a part of GMDSS system equipment required by SOLAS or many domestic maritime regulations. When installed with the GM800 MF/HF radio, GM600 and GM800 radios provides an ideal GMDSS VHF, MF and HF radio station.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Frequency range
TX: 156.025 ~ 161.600 MHz
RX: 156.025 ~ 162.000 MHz (156.500 ~ 162.025 MHz for China)
DSC: 156.525 MHz
Usable channels: INT channels
Type of emission: 16K0G3E (FM), 16K0G2B (DSC)
Power supply requirements
GM600: 13.8 V DC
PS-310 #01 input voltage: 24 V DC (21.6 ~ 31.2 V)
PS-310 #02 input voltage: 12 V DC (10.8 ~15.6 V)
Current drain(with PS-310 #01)
TX 25 W output: 3.3 A (approx.)
RX Max. audio: 2.0 A (approx.)
Operating temperature range: –15°C to +55°C
Antenna impedance: 50 Ω (SO-239)
Weight (approx.)
GM600: 1600 g
PS-310: 930 g
Dimensions (W×H×D)(Projections not included): 274×114×121.5 mm
IEC 61162-1 in/out format
Input: RMC, GGA, GNS, GLL, VTG
Output: DSC, DSE
