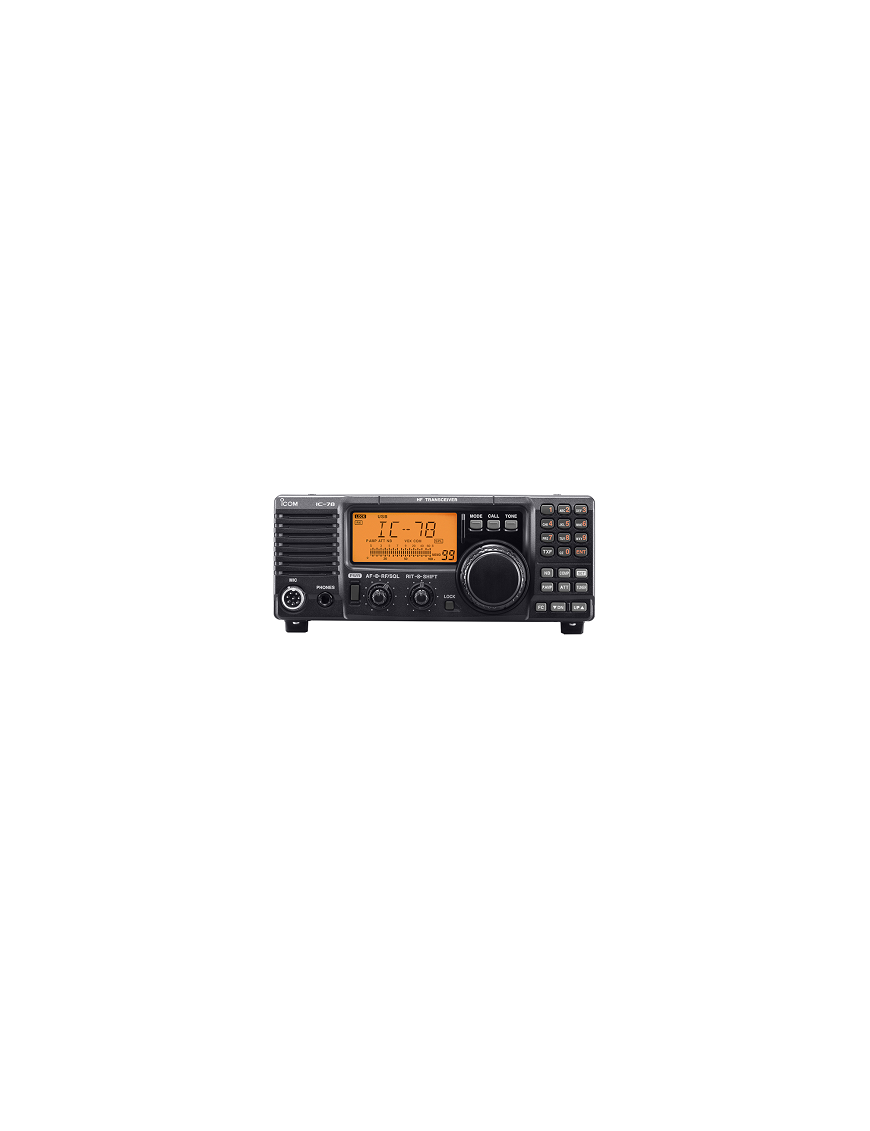

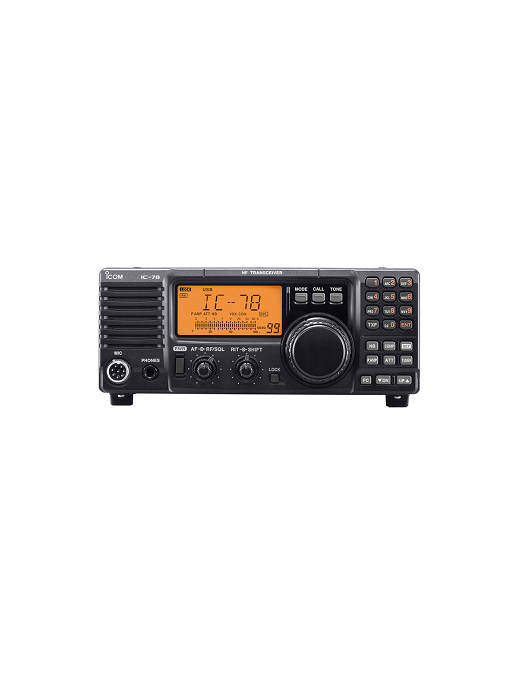

ICOM IC-78

PRODUCT FEATURES

• Simple Operation with Easy-to-Read LCD
• Prompt Operation with Memory Channels
• Front Mounted Loud Speaker
• Five user selectable IF filter widths
• Microphone Compressor increases average talk power
• VOX capability for hands-free operation
• RIT, Preamp and Attenuator functions
• Noise Blanker function reduces pulse type noise
• IF Shift for interference rejection
• CW mode and RTTY mode operation
• Scan function
• Built-in antenna tuner control circuit
• Data cloning between transceivers
• RF Gain and Squelch Control
• Hand microphone is supplied

SPECIFICATIONS

Frequency range

TX: 1.6 ~ 29.9999 MHz(Guaranteed: 0.5 ~ 29.9999)

RX: 0.03 ~ 29.9999 MHz

Power supply requirement: 13.8 V DC ±15% (Negative ground)

Dimensions (W×H×D: Projections not included): 240 × 95 × 239 mm, 9.4 × 3.7 × 9.4 in

Weight (Approximate): 3.8 kg, 8.4 lb

Current drain(at 13.8 V DC)

Rx Max. audio Stand by: 2.0 A, 1.3 A

Tx Max. power: 21.0 A

Sensitivity(at 10 dB)

SSB, CW, RTTY: 0.16 μV (1.600 ~ 29.999999 MHz)

(0.5 μV at 12 dB SINAD)

AM: 13 μV (0.5 ~ 1.599999 MHz)

2 μV (1.600 ~ 29.999999 MHz)

Selectivity

SSB, CW, RTTY: More than 2.1 kHz/–6 dB

Less than 4.5 kHz/–60 dB

AM: More than 6.0 kHz/–6 dB

Less than 20 kHz/–40 dB

Audio output power (at 13.8 V DC): More than 2.0 W at 10% distortion with an 8 Ω load

Output power (PEP)

(Output power differs depending on version)

SSB, CW, RTTY: 2 ~ 100 W

AM: 2 ~ 35 W
