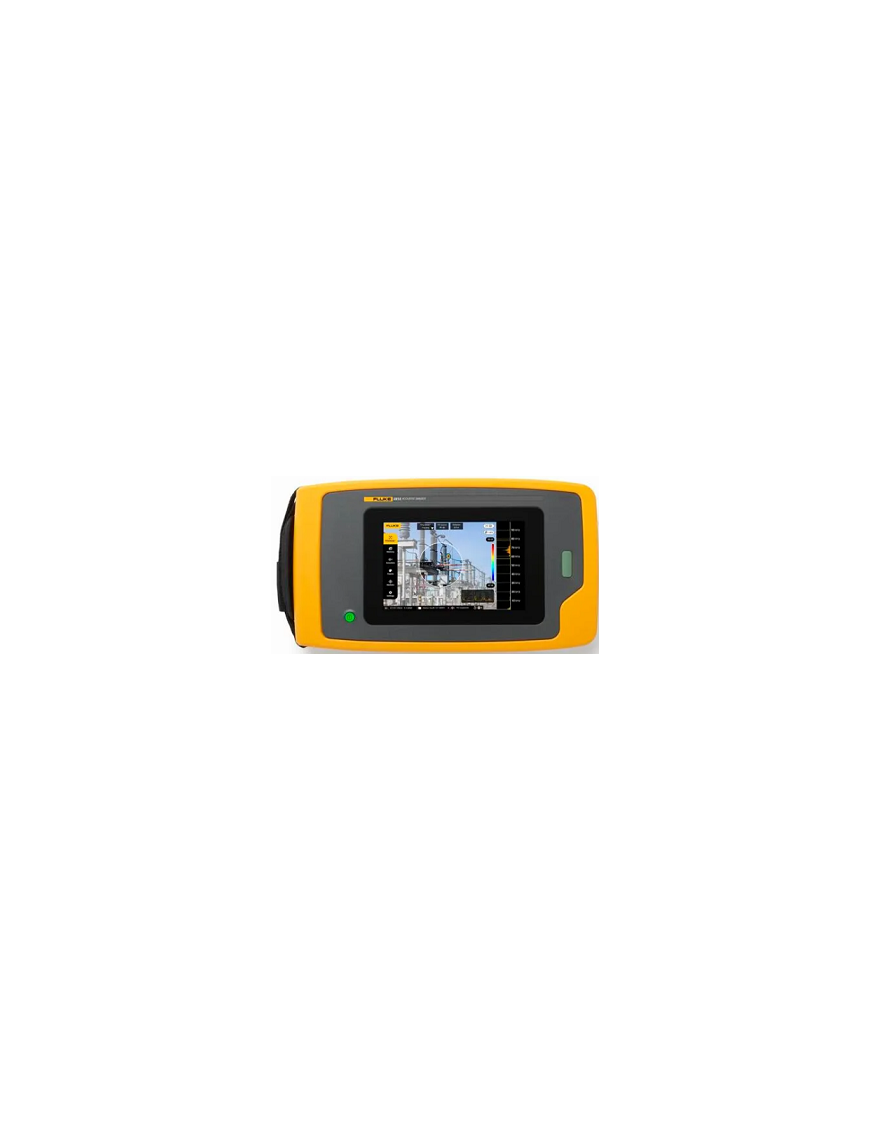

Fluke ii915 Acoustic Imager

PRODUCT FEATURES

Enhanced Performance: Improved detection performance for gas leaks, electrical discharges, and mechanical issues.

LeakQ™ Mode: Estimated leak size and cost.

PDQ Mode™: Assesses discharge severity.

MecQ™ Mode:  Proactively address potential problems in rotating mechanical components.

Reporting Features: Integrated visual and textual tagging and annotation functionalities for streamlined reporting.

Wireless Upload: Easily transfer data to Fluke Connect.

SPECIFICATIONS

Tripod holder / connector: Yes: 1/4"-20

USB: 2 x USB-C

Wireless: Wifi

Operating Temperature: -10 to 45 °C (14 to 113 °F)

Storage Temperature: -20 to 70 °C (-4 to 158 °F) without batteries installed

Relative humidity: 10 to 95 % non-condensing

Size (H x W x L): 186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches)

Weight (battery included): 2 kg (4.4 pounds)

Ingress Protection (IP): IP40

Warranty: 2 year

Fluke Premium Care: Premium Care Standard3

Self-diagnostic notification: Array-health test to identify when microphone array needs attention

Supported languages: Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Simplified Chinese, Spanish, Swedish, Traditional Chinese

RoHS compliant: Yes
