Always on for faster, safer voltage testing

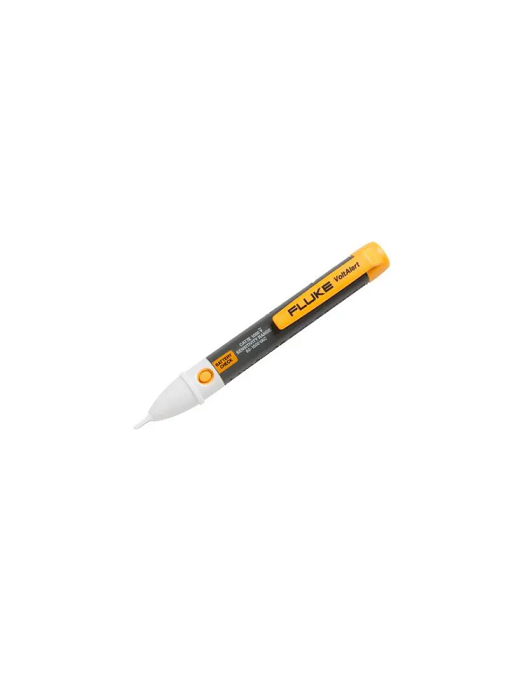

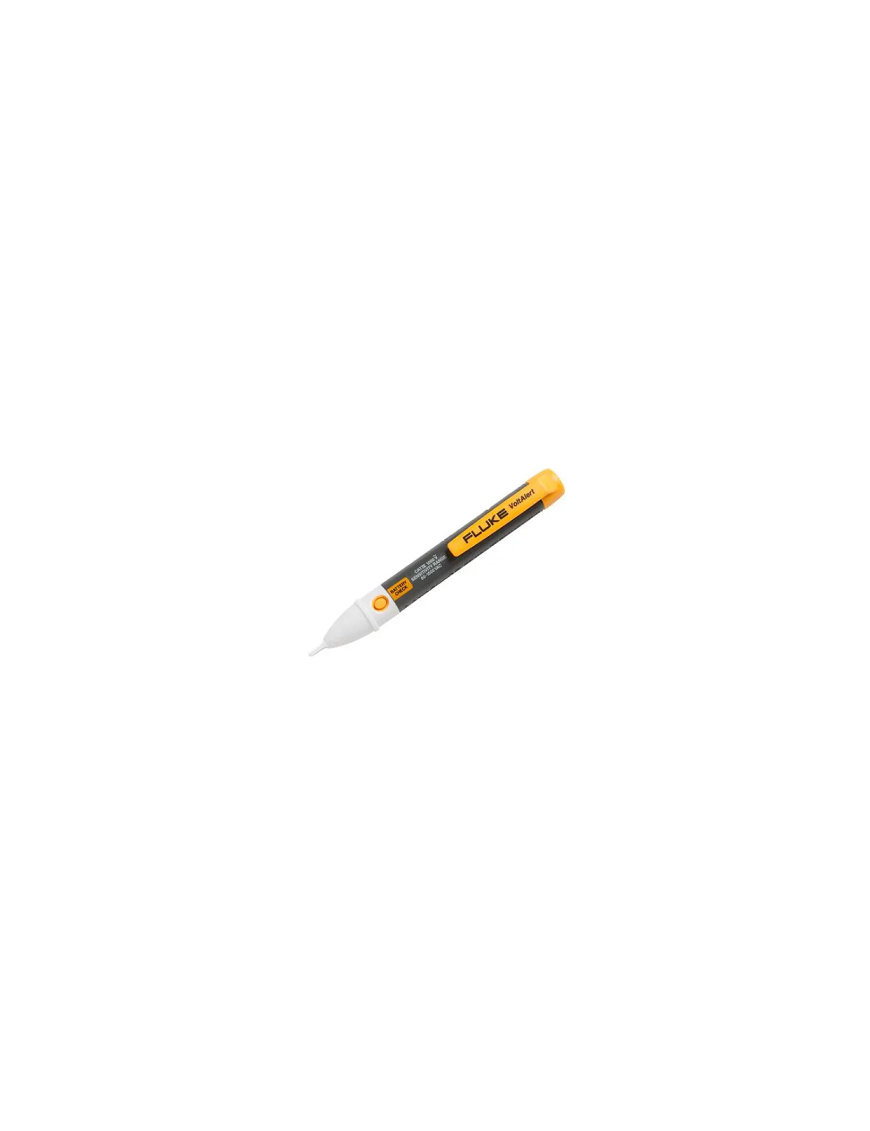

The Fluke 2AC is the latest addition to the VoltAlert™ AC non-contact voltage tester family. It is designed to be pocket-sized and easy to use. The tip of the pocket-sized tester will glow red when within close proximity of an outlet, terminal strip, or power cord where voltage is present. The 2 AC is always on, with a battery check function to make sure the tester is working properly.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Operating Principles: Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip indicates the presence of voltage.
Safety Compliance: Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2
EMC Compliance: Meets IEC 61326-1:2006
Operating: 90 V AC to 1000 V AC, CAT IV 1000 V rated
Temperature (Operating and Storage): -10°C to 50°C (-14°F to 122°F)
Operating Humidity Ranges: 0% to 95% (0°C to 30°C)
0% to 75% (30°C to 40°C)
0% to 45% (40°C to 55°C)
Altitude: 2000 m (CAT IV 1000 V)
Cleaning: Clean with damp cloth
Battery Life: Typical battery life of greater than one year
Warranty Period: Two years
