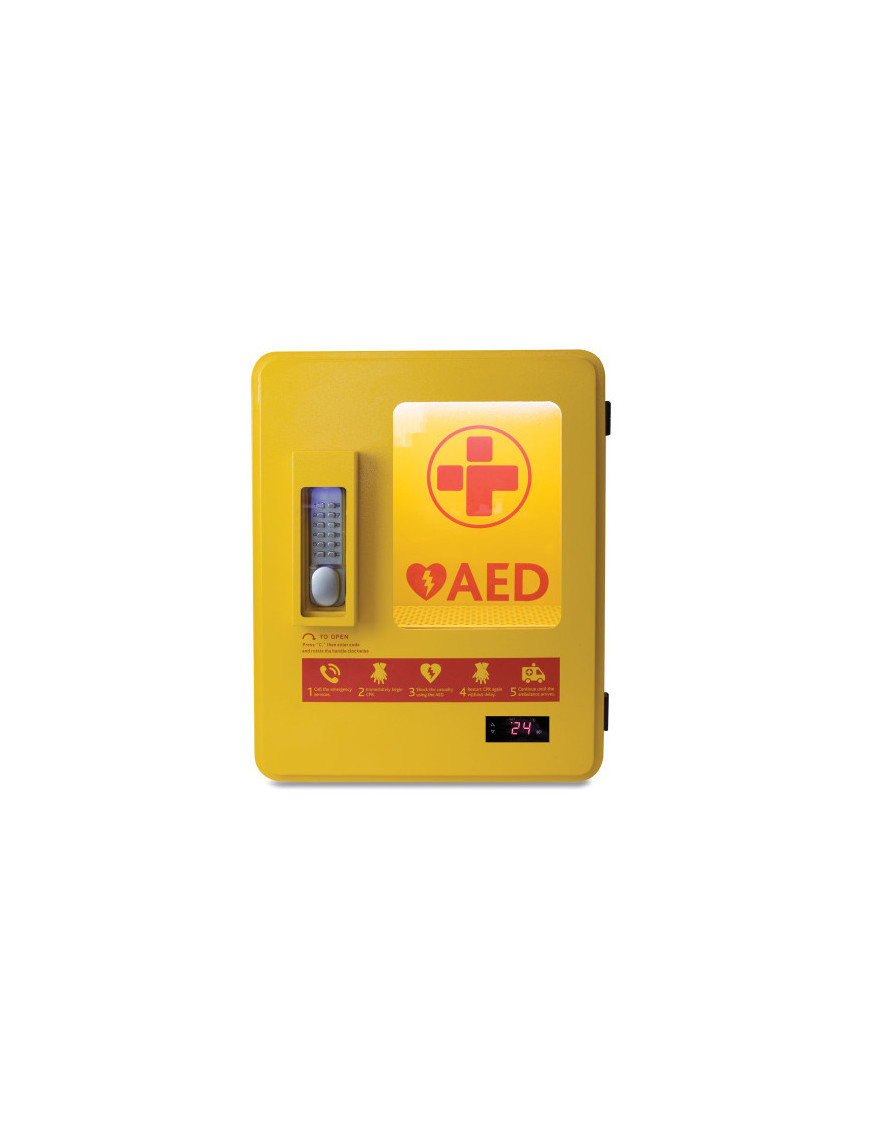

AED Alarmed Outdoor Heated Metal Cabinet

Our AED wall mounting cabinet offers you security, practicality, high visibility, outdoor weather resistance and peace of mind in the event of an emergency.

The cabinet is manufactured from thick carbon steel with the addition of a shatterproof transparent window, allowing you to quickly check the status of your defibrillator. Finished in visible yellow, with the added features of a waterproof seal, user regulated temperature settings and a magnetic LED light which is operated when the door opens. The cabinet also includes AED instruction icons to guide users on the correct procedure.

Mechanical Keypad

The mechanical keypad has a permanent blue LED light which allows the user to access their AED with their chosen numeric combination.

Digital Temperature and Thermostat Display

The digital temperature display has an illuminated LCD screen displaying the internal temperature. The user can view the display, set the temperature and be certain that the defibrillator is being stored at the correct temperature.

Integrated Alarm

Once activated, the integrated alarm will sound when the cabinet is opened.

Manufacturers 12 Month Warranty

KIT CONTENT

COMPONENTS

Mechanical keypad.

Alarm (120DB).

Heating system.

Thermostat.

Magnetic LED light.

9V blue LED light.

9V transformer.

SPECIFICATION

Weight: 11.5kg.

Size: 500mm x 400mm x 220mm.

Internal size: 370mm x 380mm x 170mm.

Material: 1.5mm Steel.

IP56 Waterproof rating.

Option to hard wire.

POWER SUPPLY

Main power: 220V.

Alarm: 9V Battery.

Thermostat/Heating system: 220V, 100W, UK 3 pin plug.

Magnetic LED light: 220V, 5W.

Alarm: 9V battery.

Blue LED illumination: 9V, 0.5W

PRODUCT DIMENSIONS

Internal: 37cmH x 38cmW x 17cmD

External: 50cmH x 40cmW x 22cmD
