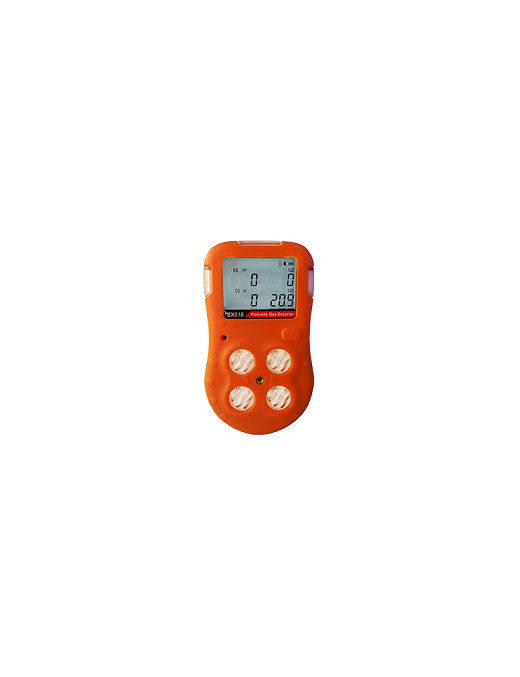

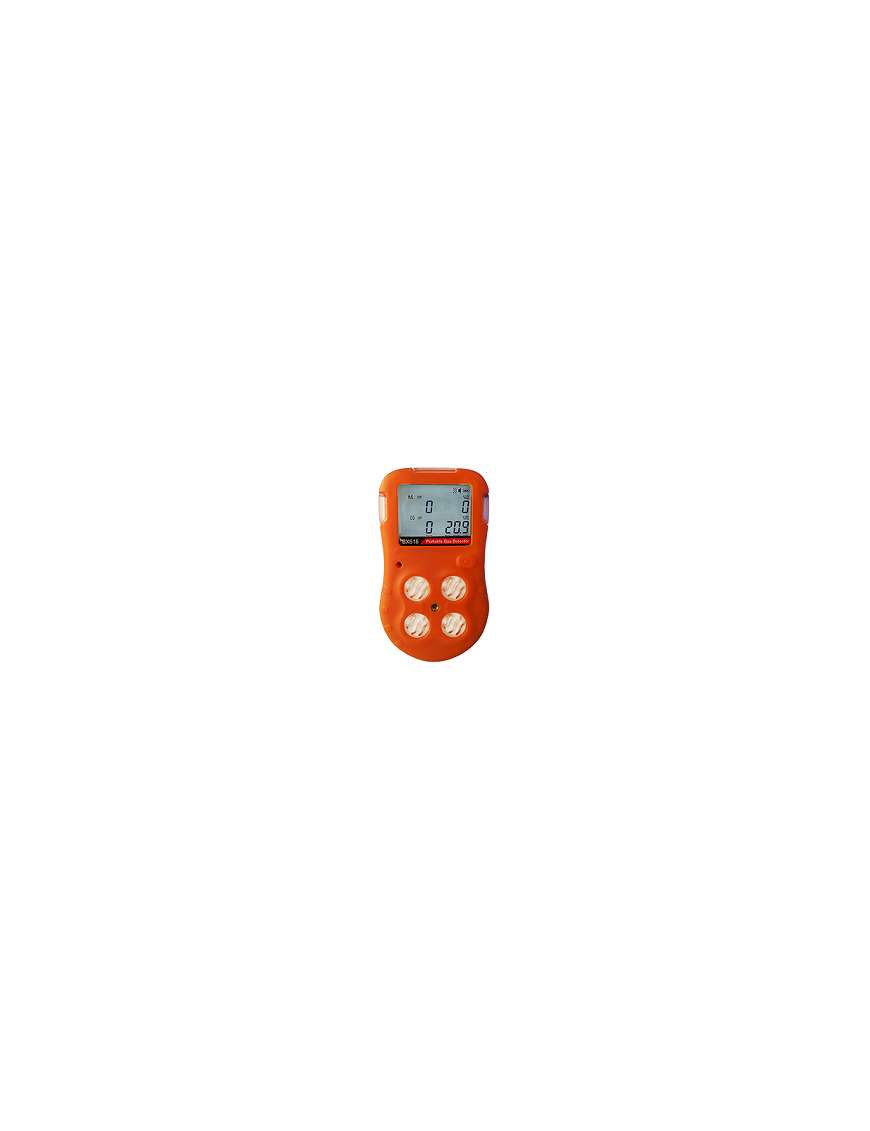

BX616 is a united gas detector measuring four (4) major gases, which result the most of the industrial accidents, to protect the disasters caused by the O2 deficiency, toxic gas poisoning and combustible gas explosion. It measures continuously four gases O2, CO, H2S and combustible gas (CH4), and displays their concentrations. Once the risk occurs, it also raises the alarm (visual, audible and vibrative).
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Steelworks, petrochemical plant, oil industry, shipbuilding yard, sewage treatment plant, mine, power supply works, confined spaces etc.
Measuring gas: O2, CO, H2S, Combustible
Measuring range: 0-25%VOL, 0-500ppm, 0-100ppm, 0-100%LEL
Sensor type: Electrochemical, Electrochemical, Electrochemical, Catalytic
Measuring type: Diffuse naturally
Response time: T90<30s
Display: LCD screen
Audible: ≥85dB at 1m
Alarm method: Visual, audible and vibrative signals
Battery: DC3.7V 1800mAh Lithium battery
Operating time: ≥8h per charge (Charging time: 4-6h)
Event log: 100,000 events
Working temperature: Toxic gases: -20℃~50℃ Combustible: -40℃~70℃
Working humidity: <95%RH (no condensation)
Housing: Rubber enclosure
Standard accessories: Operation manual, calibration cap, charger, screwdriver
Dimension & weight: 120×68×30mm, about 220g
Ex grade: II 2G Ex ia IIC T4 Ga or II 2G Ex db ia IIC T4 Gb
Ingress protection: IP66
