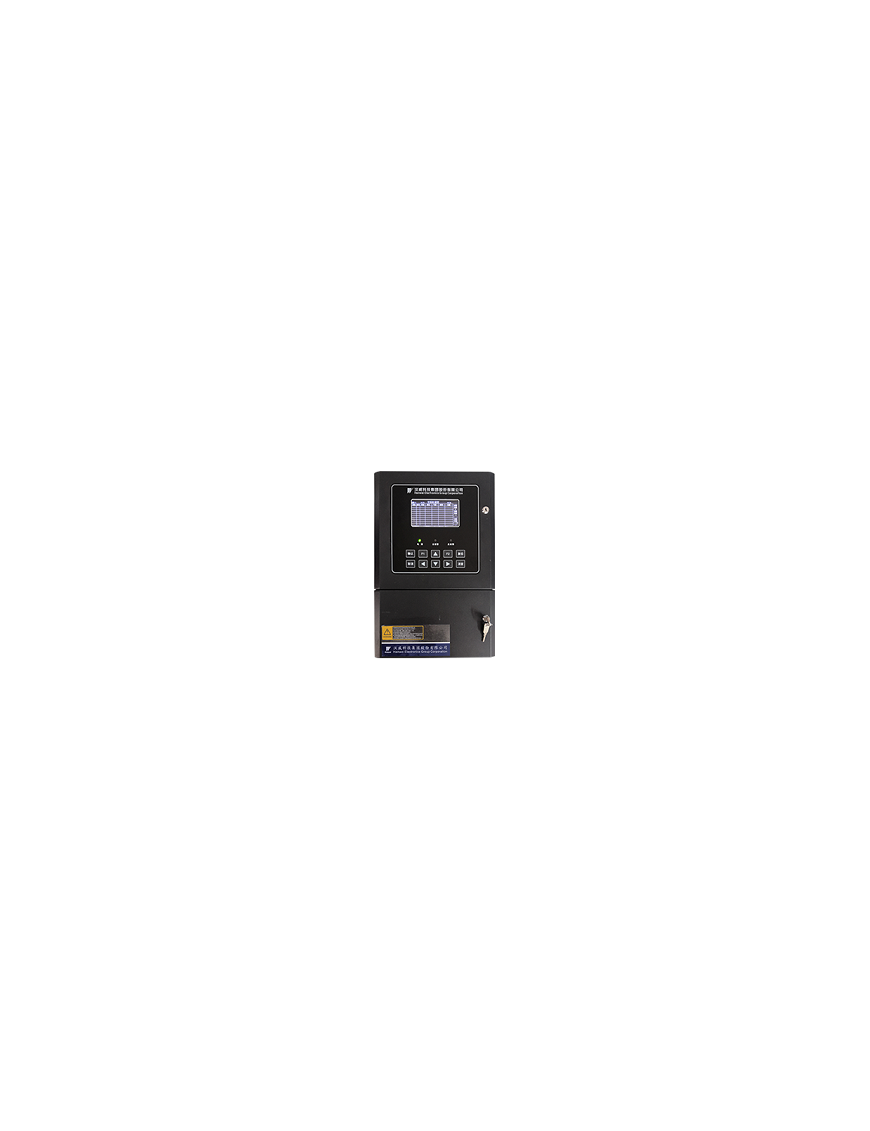

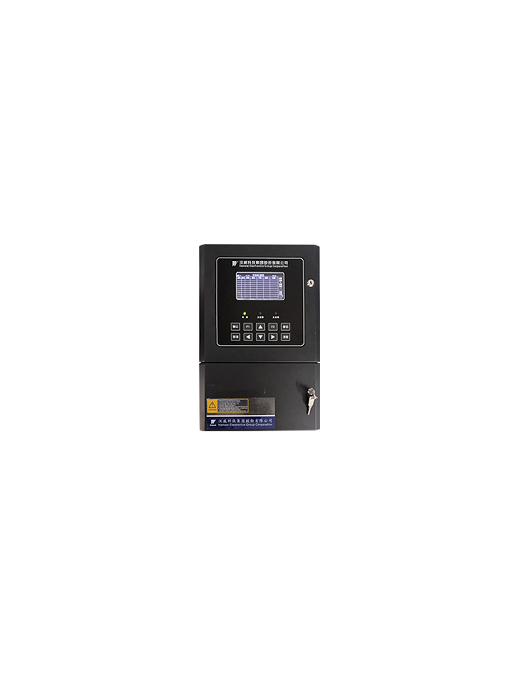

HANWEI KB500 Gas Alarm Control Panel

PRODUCT FEATURES

• Automatic search at boot
• External devices can be started via the panel
• Power management function
• English menu, easy to operate
• Convenient for online zero calibration and relay setting

APPLICATIONS

It forms a combustible gas alarm control system with an alarm, which is suitable for 9 small places such as industrial and commercial small restaurants, snack bars, barber shops, bathrooms, small hospitals, and shopping malls, underground integrated pipe corridors and other environments where gas may leak.

SPECIFICATIONS

Power supply: Main power: AC 220V±33V, 50Hz±5Hz

Backup battery: DC 24V±3V rechargeable lead-acid battery

Consumption: ≤20W

Power to detector: DC24V±6V

Detection connection: 2×PBUS loops, protection current: ≤2.5A

Digital upload: 2×RS485 output, support MODBUS

Relay output: 3 active relays, 3 free contact, relay capacity ≤4A

Ingress protection: IP54

Working temperature: 0℃～40℃

Humidity: ≤95%RH

Display and indication: 4.3” color LCD screen and status LED indicators

Alarm indication: Audible (65dB-100dB@1m), visual

Dimension: 370mm×246mm×90mm (without mounting bracket)

Weight: ≤15kg
