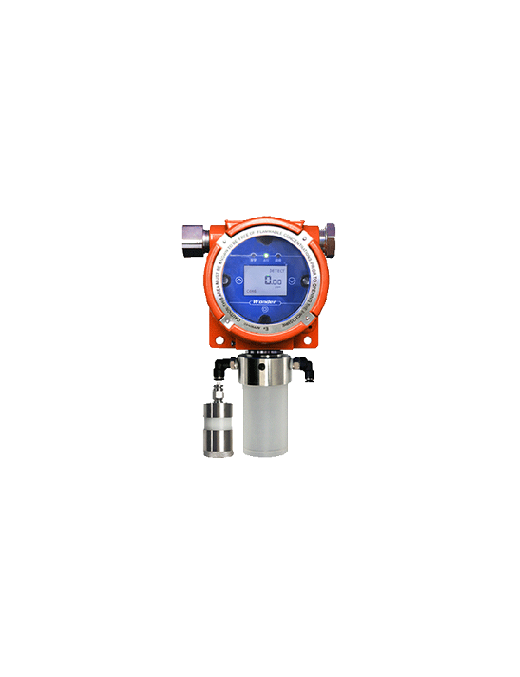

HANWEI VOCScan800 Fixed VOC Detector

PRODUCT FEATURES

• Automatic / manual zero calibration, manual zero calibration on site
• Equipped with many selectable functions
• Multiple detection ranges (0.0-100.0ppm, 0-1000ppm and 0.00-20.00ppm)
• Default factory detection range is 0.0-100.0ppm
• Built-in intelligent processor can manage multi-port valves and regulate the flow of clean air to the detection air chamber
• With self-cleaning function, the detector can wash away the pollutants in the sensor through the circulation of clean air, which ensures the measurement accuracy of the sensor, thereby reducing the workload of on-site maintenance.
• End user can set the time of self-calibration and self-cleaning cycle
• Cleaning Interval / Self-Zero is 60 minutes

APPLICATIONS

This product is suitable for a variety of scenarios, such as petrochemical refining, synthetic fiber manufacturing, gas leakage collection and environmental protection information detection.

SPECIFICATIONS

PID lamp: 10.6eV (Krypton)

Detection range: Standard: 0.0-100.0ppm (resolution: 0.1ppm)

Optional: 0.00-20.00ppm (resolution: 0.01ppm)

Optional: 0-1000ppm (resolution: 1ppm)

Accuracy: Range 0.0-100.0ppm: ±2% F.S.

Range 0.00-20.00ppm: ±2% F.S.

Range 0-1000ppm: ±5% F.S.

Response time: T90 < 20s (Isobutene)

Linearity: 0-100ppm: >98%

Power supply: DC9V to DC36V (Max current 125mA @DC24V)

Display: LCD screen (200×140 pixel with backlight)

LED indications for normal, alarm and fault

Alarming signal: Audible and visual

Ex grade: Ex d IIC T6 Gb / Ex tD A21 IP66 80°C

Ingress protection: IP66

Working temp.: -40°C -55°C

Related humidity: 0 - 98% (no condensation)

Signal output: 4-20mA analog signal

MODBUS RS485

3 dry relays (capacity DC30V/3A)

Dimension: 134mm×125mm×125mm (5.25”×4.90”×4.90”)

Weight: About 3.5kg

Operation: By magnetic rod / IR remote controller

Calibration: Zero point = activated carbon canister

Span calibration: 100ppm Isobutene or 20ppm Isobutene
