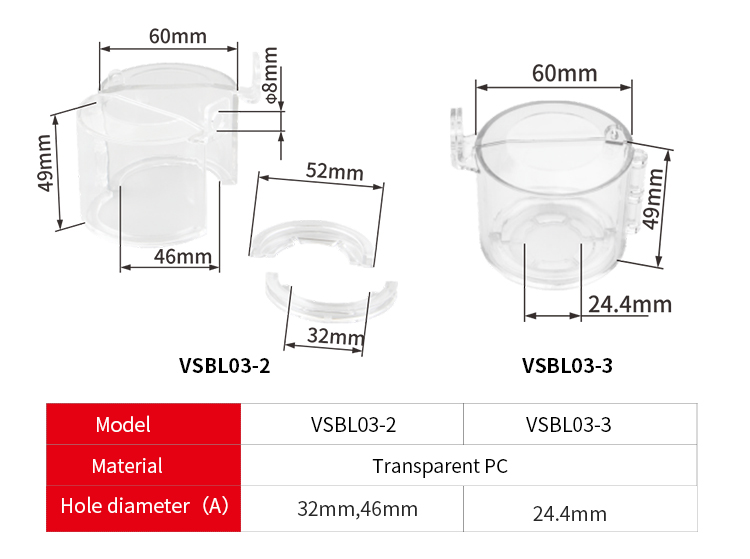

Lockable size: Dia. 32mm
Color: Transparent
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)

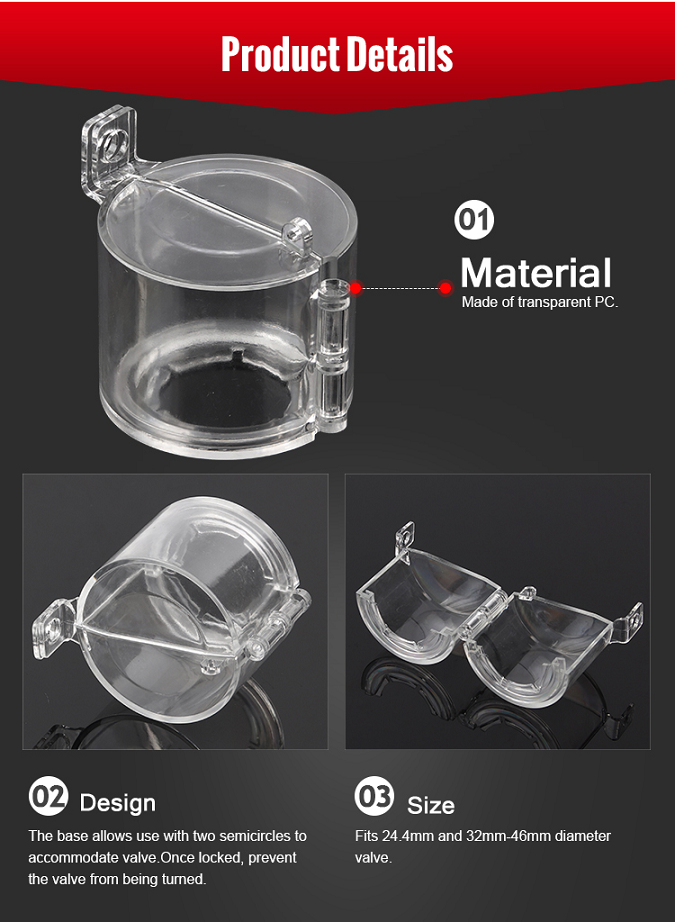

a) Made of transparent PC, withstand temperature from -20℃ to +120℃.
b) Once locked, prevent the valve from being turned.
c) The base allows use with two semicircles to accommodate valve.
d) Accommodates valve up to 55mm diameter and 43mm tall.
e) Fits 32mm-46mm diameter valve.
Material: ABS Color: Red Used for food,pharmaceutical and other situations
Suitable for sanitary butterfly valve with 35mm diameter head
Color: Red
Dimensions: 2.75 in H x 4 in W x 12 in D
Color: Red
a) Made from ABS, withstand temperature from -20℃ to +90℃.
b) Good chemical property, resistant to oil stains and chemical product corrosion.
c) Can be covered and rotated freely around valve wheels and adjustable to fit all ranges of valves handles.
d) Dimensions: 2.75 in H x 4 in W x 12 in D (8mm to 45mm valve handle can be locked out properly).
Lockable size: 1/4 in. to 5 in. diameter
Color: Red
a) The Flanged Ball Valve Lockout FBVL01 is Lockey’s patented design. It is made from durable ABS, highly resistant of abrasion and cracking.
b) Understand temperature from -20°C to 90 °C extreme temperature weather.
c) The valve lockout is adjustable, with 7 locking holes to adjust the size, suggested to lock together with 1 padlocks and 1 tags.
d) The max clamping shackle diameter is 8mm.
e) Normal stock: red color. Green, yellow, blue also supported. Other colors can be customized.
f) Feature: Durable, light weight, chemical resistant, stand able in extreme weather, OEM service supported.
a) Made from ABS.
b) Removable insert accommodates a wide range of handle designs and dimensions.
c) It has an auxiliary rear plate, which can lock out double roll valves.
Size: 157mm×102m, hole diameter: 7.5mm
Used on ball valve sizes from 6.35mm (1/4”) to 25mm (1”), hole diameter is 3/8”
VSBL11 Hole Diameter: 31.9mm×31.9mm
VSBL12 Hole Diameter: 40mm×40mm
Color: Transparent.
Material: PC
Overall size: 44×175mm
Usage: pull it up and down
Color: Red
Made from durable ABS
Accept up to 2 padlocks, locking shackle max diameter 8mm
Color: Yellow
Easily installed, no tools needed
Suitable for locking Schneider circuit breaker
Lockable size: 2in to 2-3/4in (52.3mm – 69.9mm) nut diameters
Color: Red
Lockable size:
Suitable for CLOSED pipes 1/2″ to 3.15″ in diameter,
OPEN on pipes from 1/2″ to 2.5″
Color: RED
Size: 157mm×102m, hole diameter: 7.5mm
Used on ball valve sizes from 6.35mm (1/4”) to 25mm (1”), hole diameter is 3/8”
Overall size:76mm×189mm
Label and color can be custom made
Color: Red, Yellow, Blue
Lock hole: 9mm
Max clamping 10.5mm
Need a small screw driver to install.
Color: Red
Color: Transparent
Hole diameter: 7mm
Accommodate buttons up to 60mm tall
38mm Steel Shackle
Shackle Dia.: 6mm
a) Reinforced nylon body, withstand temperature from -20℃ to +80℃. The steel shackle is chrome plated; the non-conductive shackle is made from nylon, withstand temperature from -20℃ to +120℃, ensuring the strength and deformation fracture not easily. The cover is made of non-transparent silicone.
b) Key Retaining Feature: When the shackle is open, the key can’t be
c) removed Shackle Length: 25mm, 38mm, 76mm.
d) Laser printing and logo engraving available if required.
e) Different types of lock bodies and all different colors available.
For 120-277V breaker lockouts
Handle width≤16.5mm
Easily operated without any tools
Color: Red
Lockable size: Dia. 32mm
Color: Transparent
