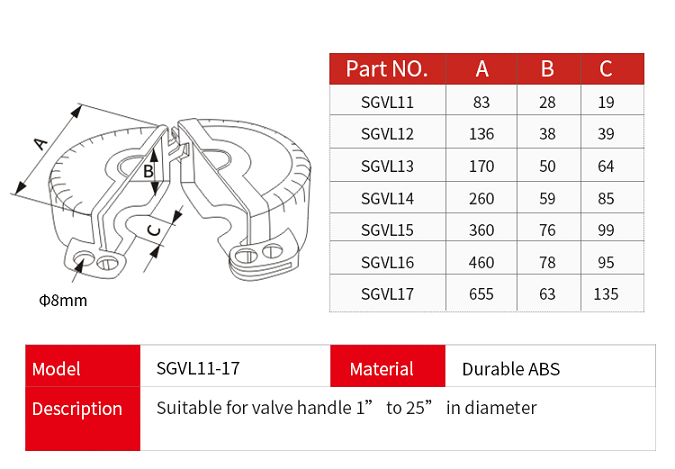

Standard Gate Valve Lockout Device

Color: Yellow

Size: 565mm(W)×400mm(H)×65mm(D)

Color: Yellow

Size :440mm(W)×390mm(H)×130mm(D)

Can take a padlock with shackle diameter up to 8mm

Easily operated without any tools

Color: Red

Cable dia.: 4mm & 6mm

Color: RED

Ensuring the safety and security of employees is of paramount importance in any workplace. To achieve this, companies must invest in reliable and efficient lockout devices. One such device that has gained popularity in recent years is the adjustable steel cable lockout. This article will explore the features and benefits of this innovative lockout solution, highlighting its role in enhancing workplace safety and security.

Color: Red

Max clamping 8.5mm

Need screw driver to install

Overall size: 44×175mm

Usage: pull it up and down

Color: Red

Lockable size: 1/4 in. to 5 in. diameter

Color: Red

Adjustable Flanged Ball Valve Lockout FBVL01

  a) The Flanged Ball Valve Lockout FBVL01 is Lockey’s patented design.  It is made from durable ABS, highly resistant of abrasion and cracking.

  b) Understand temperature from -20°C to 90 °C extreme temperature weather.

  c) The valve lockout is adjustable, with 7 locking holes to adjust the size, suggested to lock together with 1 padlocks and 1 tags.

  d) The max clamping shackle diameter is 8mm.

  e) Normal stock: red color. Green, yellow, blue also supported. Other colors can be customized.

  f) Feature: Durable, light weight, chemical resistant, stand able in extreme weather, OEM service supported.

Reinforced nylon body, withstand temperature from -20?C to +80?C. The cable shackle is made from stainless steel, ensuring the strength and can?t be deformed easily.

Cable Length: 175mm, other cable lengths can be customized.

Cable diameter: 5mm.

Laser printing and logo engraving available if required.

Color: Yellow

Size :603mm(W)×600mm(H)×66.8mm(D)

Application size:

1/2in (13mm) to 2in (51mm) valves

Color: RED

PRODUCT FEATURES

OVERVIEW

a) Locks out valve in seconds by feeding CB01 cable lockout device through desired eyelet and around valve neck.

b) Made from nylon PA.Durable, lightweight thermoplastic material is chemical resistant and performs effectively in extreme environments.

c) Directional application arrows allow for ease of installation and minimize user error.

d) Stainless steel rivet allows device to smoothly pivot open and closed to ensure proper fit.

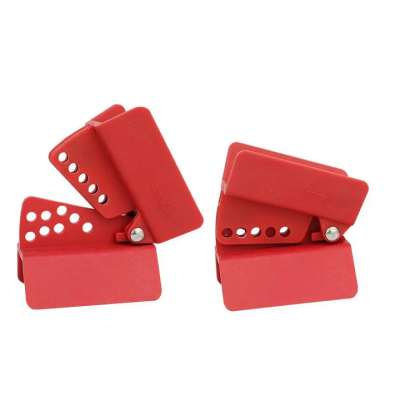

Product Number: BVL11

Material: PA6

Description: Adjustable Butterfly Valve Lockout

Service Temperature Range °F: -20℃-120℃

Lock Holes: 4.5mm

Color: Red

Total Length: 55mm

Outer width: 49mm

Inner width: 24mm

Body Height:: 61mm

Product Net Weight: 0.049kg

Jaw size: 1’’(25mm) & 1.5″ (38mm)

Lock holes: 9mm diameter

Color: Red

a) Reinforced nylon body, withstand temperature from -20℃ to +80℃. The steel shackle is chrome plated; the non-conductive shackle is made from nylon, withstand temperature from -20℃ to +120℃, ensuring the strength and deformation fracture not easily.

b) Key Retaining Feature: When the shackle is open, the key can’t be removed.

c) Laser printing and logo engraving available if required.

d) All different colors available.

25mm Mini Shackle, dia. 4.2mm, steel shackle

Color: Red, yellow, green, orange, black, white, blue, dark blue, gray, purple, brown.

Aluminum Shackle Safety Padlock P25A

a) Reinforced nylon body, withstand temperature from -20℃ to +120℃ . Aluminum shackle is spark proof with surface oxidation treatment.

b) Key Retaining Feature: When the shackle is open, the key can’t be removed.

c) Laser printing and logo engraving available if required.

d) All different colors available.

POS (Pin Out Standard) ,2 holes required, fit up to 60Amp

Available for single and multi-pole breakers

Easily installed, no tools needed

CBL11-2:Dedicated to Schneider circuit breakers EZD below 100A

CBL11-3:Dedicated to Schneider circuit breaker EZD between 160~250A

Color: Red
