SOLAS typically requires that 4 Linethrowing appliances are carried by ships.

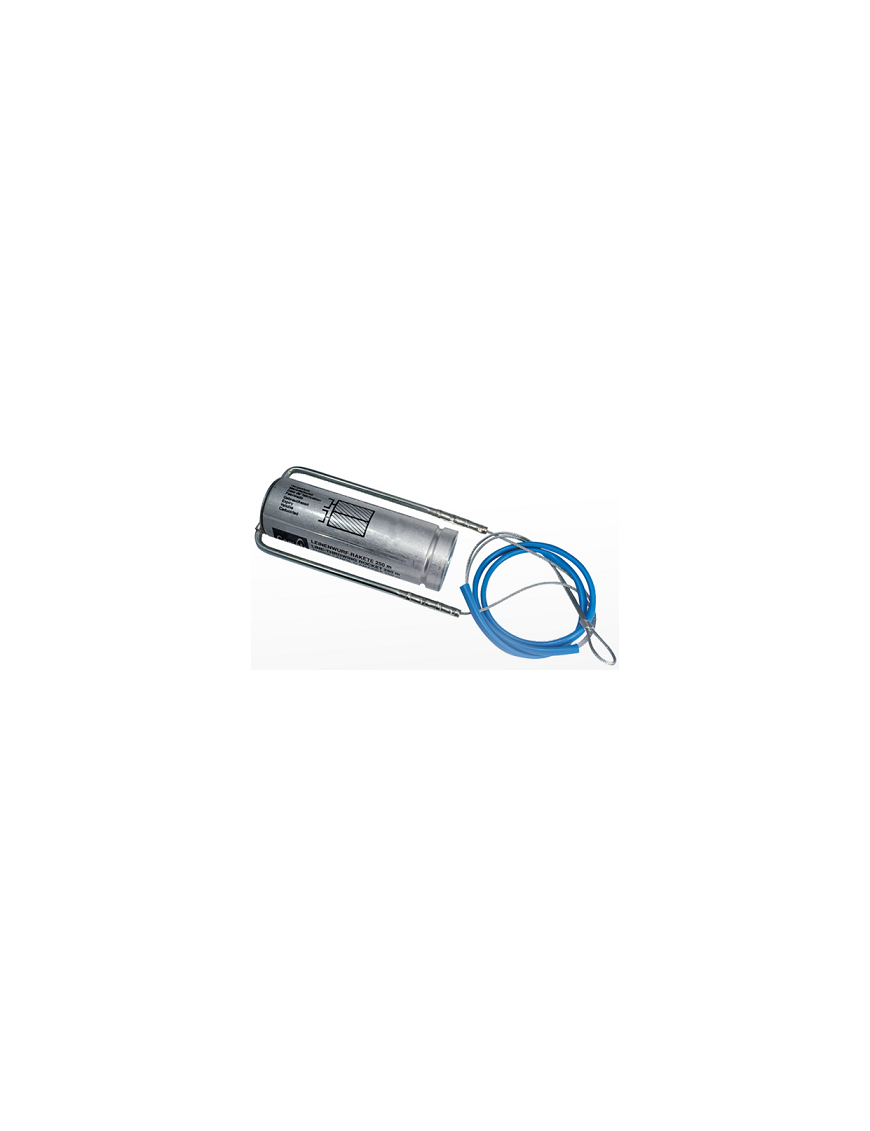

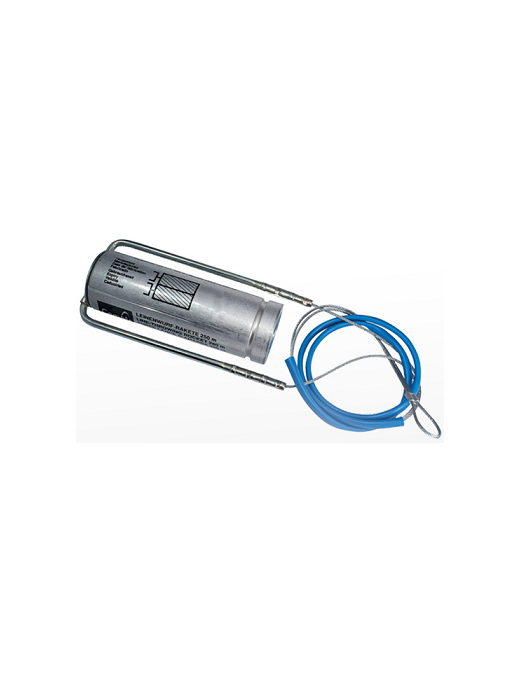

A self-contained line-throwing appliance consisting of a weatherproof plastic casing with end cap, twist-grip trigger assembly, rocket and line. To comply with SOLAS requirements, four complete rocket and line assemblies (Art. No. 9160400) should be carried on board. The device has a throwing range of between 230m and 250m. A solid propellant is used which guarantees a highly accurate flight path even in strong sidewinds.
₦0.00
Tax excluded
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Used to pass a line from ship to ship, ship to shore or by rescue services. Can be used to pass a line to a swimmer in difficulties or across rivers or ravines. Stowed in lockers on Ships Bridge or strategically positioned around vessel. NOTE: Never fire rocket without a drag line attached.
Storage Requirements
Ideally should be stored in the robust, easily accessed location at ambient temperature.
Disposal
Hazardous item! Dispose of responsibly through approved channels in accordance with local regulations.
SPECIFICATIONS
Projects a line to a nominal range of 250m in calm conditions.
Length: 33 cm (13.0”)
Height: 31.3 cm (12.3”)
Diameter: 20.5 cm (8.1”)
Gross Weight: 4.7kg (10.36 lb.)
Net Weight: 4.4 kg (9.7 lb.)
Rocket Weight Max: 535g (18.9 oz.)
Explosive Content Max.: 106g (3.74 oz.)
Line breaking strain: >2 kn
STANDARDS
Conforms to: BAM 0589-P2-0016 (Complete Unit), 0589-P2-0094 (Rocket only), SOLAS 74 as amended, IMO resolutions MSC. 81(70) Part 1, (MED) 96/98/EC, BGV 424. 002, USCG - and other major maritime authorities worldwide
A self-contained line-throwing appliance consisting of a plastic case with an end cap and 250m of line, an integral striker mechanism plus a...
hookdisplayProductListReviews
₦0.00
SOLAS typically requires that 4 Linethrowing appliances are carried by ships.
A self-contained line-throwing appliance consisting of a weatherproof plastic casing with end cap, twist-grip trigger assembly, rocket and line. To comply with SOLAS requirements, four complete rocket and line assemblies (Art. No. 9160400) should be carried on board. The device has a throwing range of between 230m and 250m. A solid propellant is used which guarantees a highly accurate flight path even in strong sidewinds.
