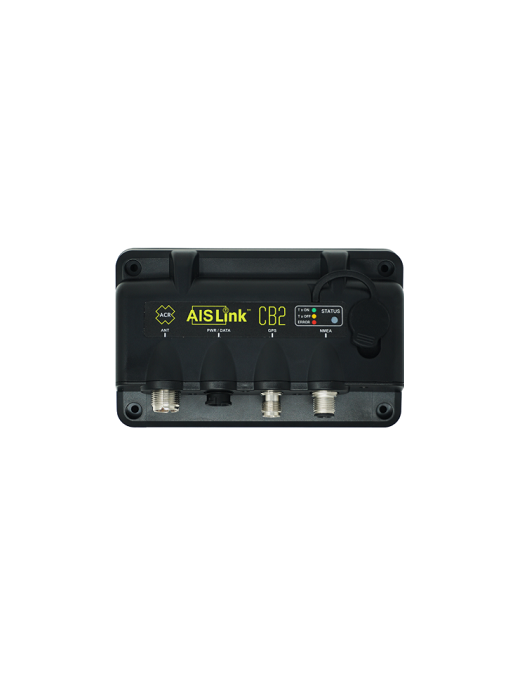

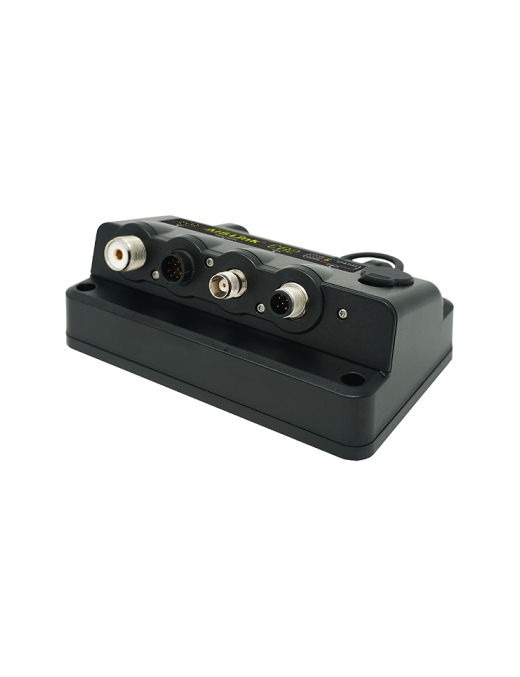

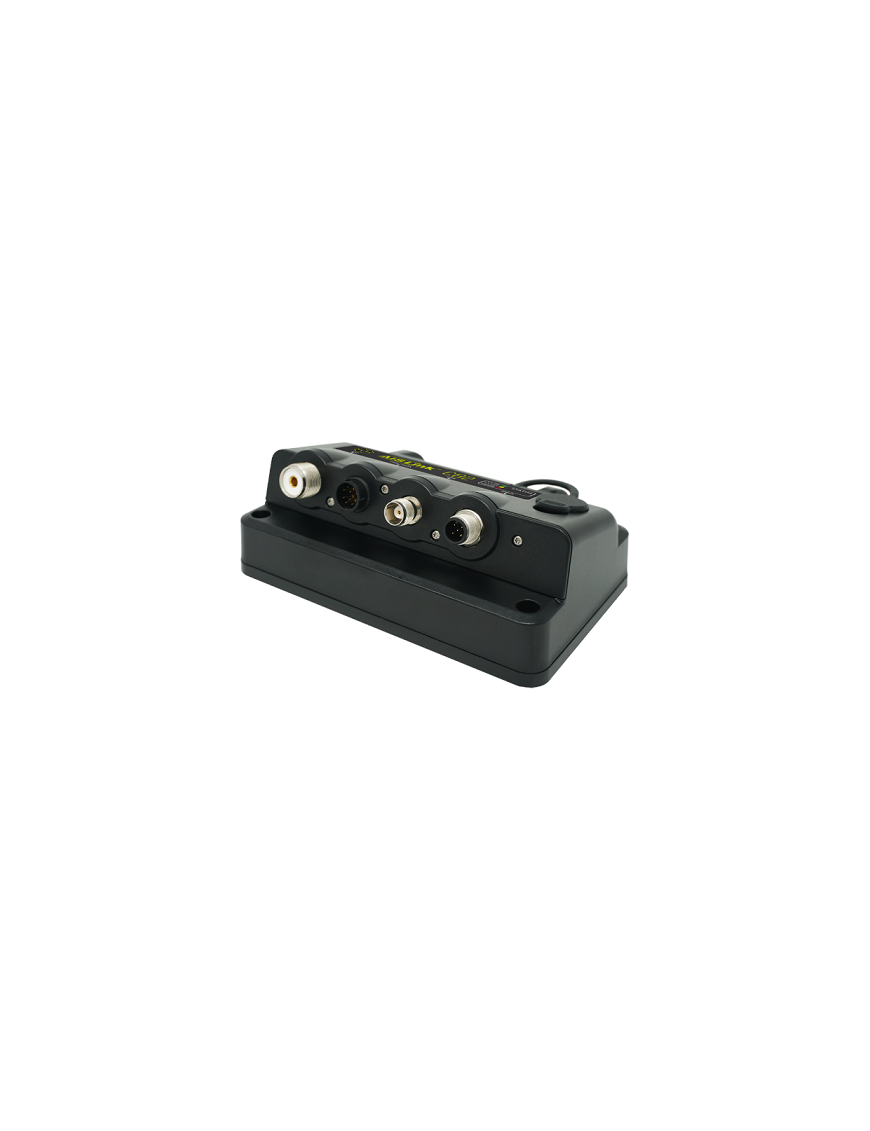

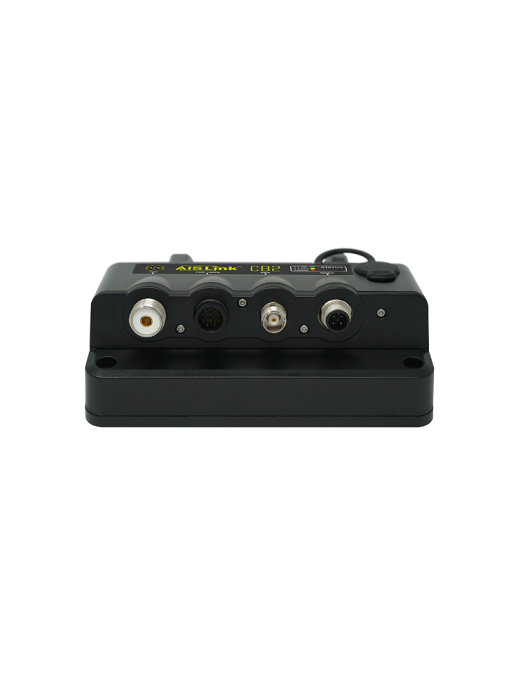

ACR AISLink CB2

The AISLink CB2 AIS Transponder is a fully compliant, waterproof Class B+ transceiver designed to help with marine traffic collision avoidance. Using advanced SOTDMA (Self Organized Time Division Multiple Access) technologies from Class A transponders, the AISLink CB2 features inherent advantages, including a faster reporting rate and higher output power concerning all Class B AIS products that use the older CSTDMA (Carrier Sense Time Division Multiple Access) technologies on the market.

₦0.00
Tax excluded
Quantity
Buy Now
equalizer cached Add to Compare favorite_border cached Add to Wishlist
weight guide

Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

PRODUCT FEATURES

  • 5 Watts of Power – More than double that of older Class B units
  • 12 Times the Transmissions Per Minute – 12 Times Versus 2 transmissions with CSTDMA
  • Guaranteed Time Slot Reservations
  • Increased visibility to other vessels
  • FREE user-friendly mobile app for set up and controls
  • Wi-Fi, USB, NMEA 0183, and NMEA 2000 connectivity
  • Simple to install and use
  • Superior internal 99-channel GPS receiver
  • External GPS antenna (Included)
  • Multi-color LED indicator light
  • Receives and interprets messages from other AIS-equipped vessels
  • Durable waterproof design
  • Low energy consumption

SPECIFICATIONS

Product Name: AISLink CB2 Automatic Identification System

Product Description: Class B AIS Transceiver

Application: Coastal Cruising, Sailing, Offshore Recreational, Charters, Workboats

Waterproof: IPx7 (1 meter for 30 minutes)

Weight: 0.36kg / 0.8lbs

Warranty: 2 Years (plus 1 on registration)

Dimensions: 101 x 162 x 58mm

Temperature Range:  Operational: -5°F to +131°F (-15°C to +55°C)

AIS Transmitter Frequency range: 156.025 – 162.025 MHz

Receiver Sensitivity: 107dBm for 20% packet error rate

AIS Receiver Frequency range: 156.025 – 162.025MHz

Transmit Power (EIRP): AIS – 5 Watt

Power Supply: 10.8 – 31.2 Vdc

GPS receiver: High Sensitivity, 99 acquisition/33 tracking

Serial Ports: NMEA 0183 [2 Rx, 2 Tx], NMEA2000® [DeviceNet], 1 x USB, 1 x WiFi IEC802.11 bgn
