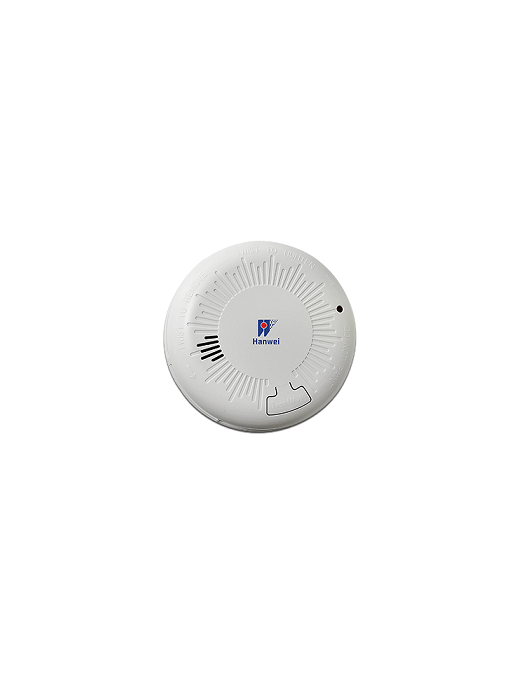

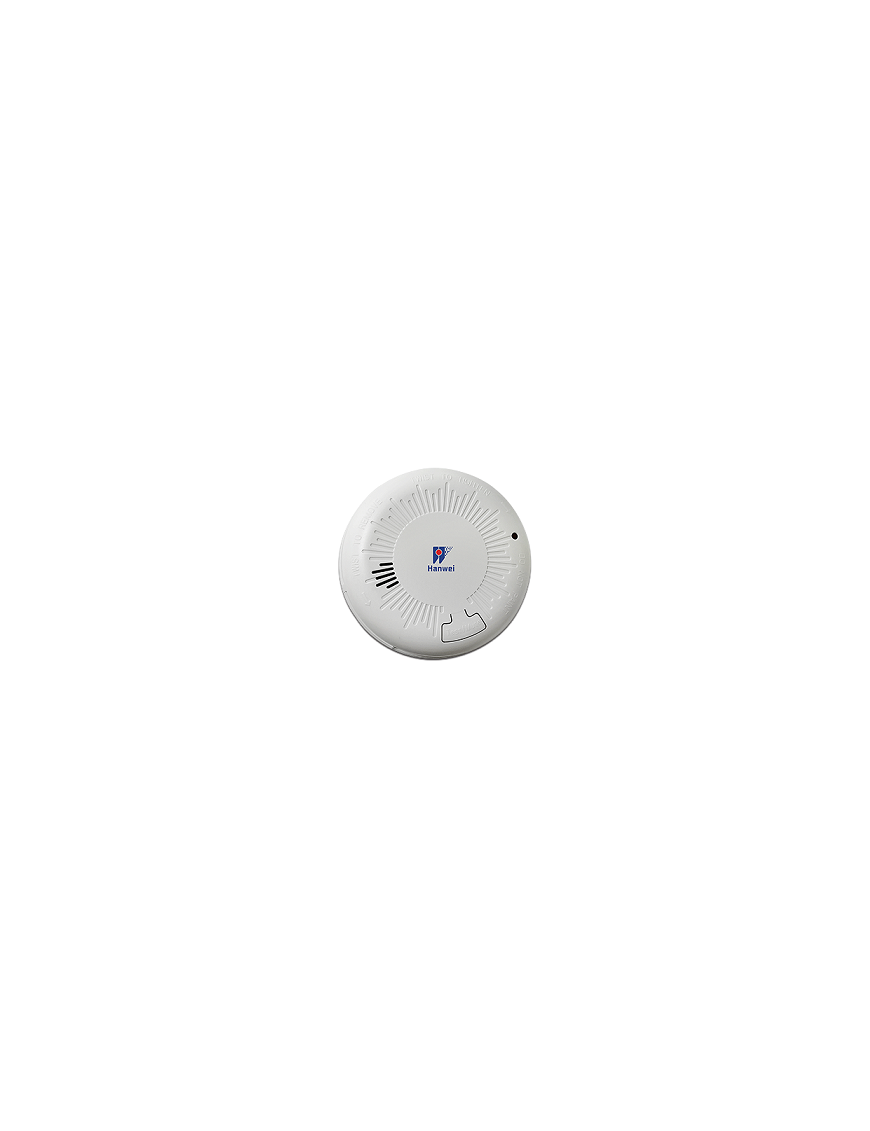

HANWEI YB030 Smoke Detector

The independent photoelectric smoke fire detection alarm YB030 detects the fire through the principle of dual optical path scattering. Scattered light?s intensity can identify whether there is smoke or not. When the smoke reaches a certain concentration, that is, the light intensity received by detector reaches a presetting level, the detector will give an audible and visual alarm


Security policy

(edit with the Customer Reassurance module)


Delivery policy

(edit with the Customer Reassurance module)


Return policy

(edit with the Customer Reassurance module)

PRODUCT FEATURES

  • Dual optical path design to avoid false alarm
  • New design
  • EN14604 pending

APPLICATIONS

The product can effectively detect the visible smoke generated by the smoldering of the fire at the early stage, so that users can notice the danger in time or organize personnel evacuation. It is suitable for various places such as home, school, store, factory, hotel and so on.

SPECIFICATIONS

Product model: YB030

Working voltage: DC 9V (alkaline battery; 6LR61; 500mah)

Alarm mode: Audible&visual alarm

Alarm sound: >=85dB@3m

Battery life: >= 5 year

Working temperature: -10?C~+55?C

Relative humidity: <=95%RH

Alarm classification: Fire alarm, fault alarm and low power alarm

Executive standard: EN 14604:2005

Product size: ?90mm?H56mm
