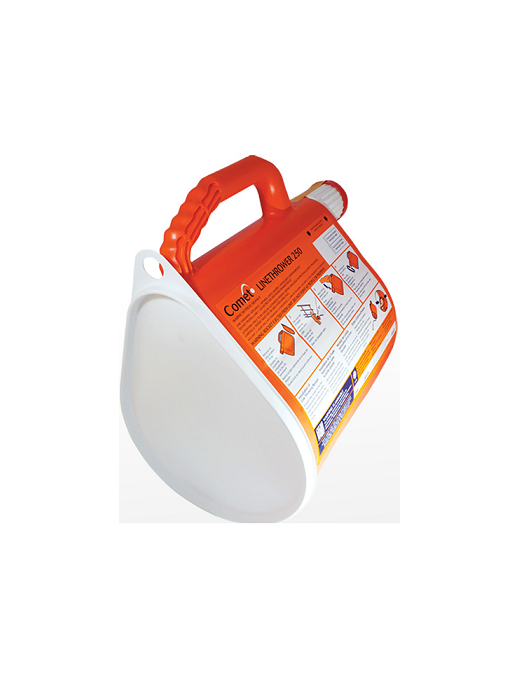

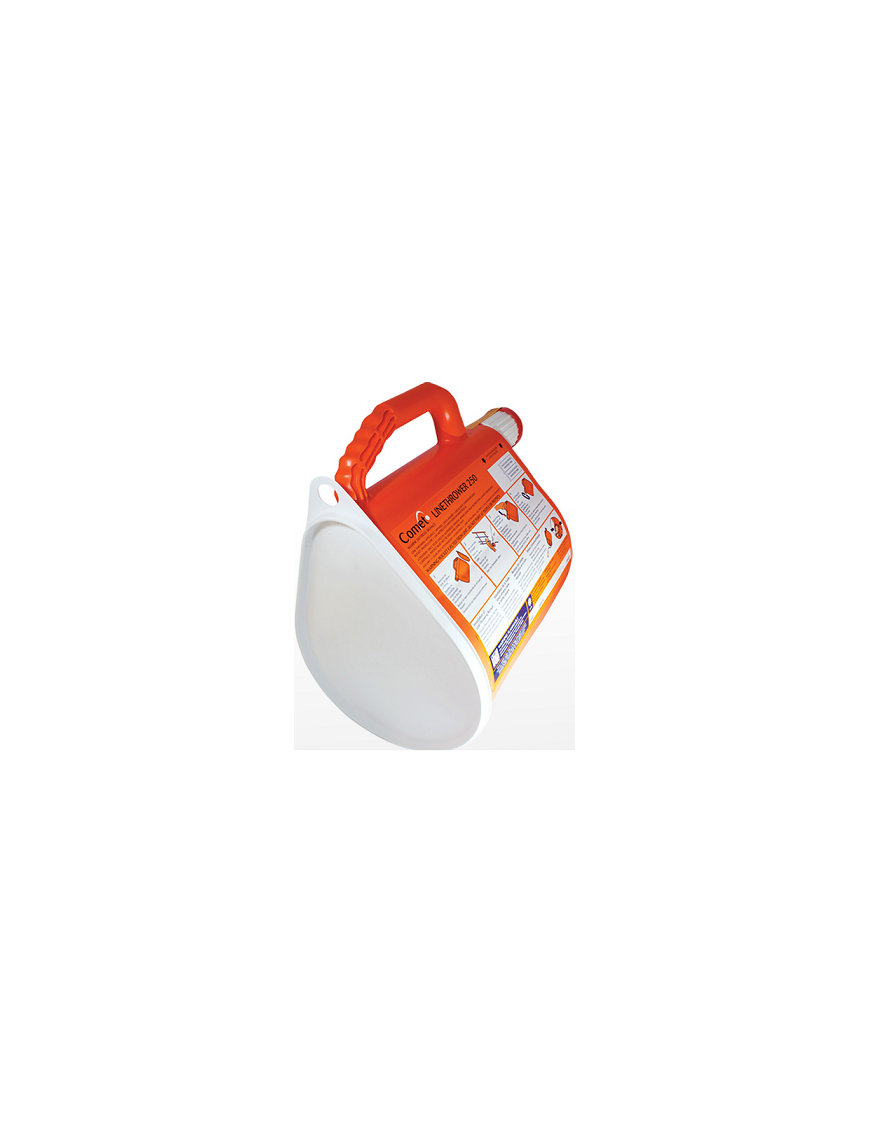

A self-contained line-throwing appliance consisting of a plastic case with an end cap and 250m of line, an integral striker mechanism plus a rocket.
To comply with SOLAS requirements, four complete rocket and line assemblies (Art. No. 9160400) should be carried on board. The device has a throwing range of between 230m and 250m. A solid propellant is used which guarantees a highly accurate flight path even in strong sidewinds.
₦0.00
Tax excluded
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
All line throwing operations at sea between vessels, ship to shore, shore to ship and shore based rescue services. Also used to rescue swimmers in distress or pass line across rivers or ravines. Replace line container after use or on third set of replacement rockets ( 9 years). Note: Never fire the rocket without a drag line attached.
Storage Requirements
Ideally should be stored in the robust, easily accessed location at ambient temperature.
Disposal
Hazardous item! Dispose of responsibly through approved channels in accordance with local regulations.
SPECIFICATIONS
Projects a line to a nominal range of 250m in calm conditions.
Length: 33 cm (13.0”)
Height: 31.3 cm (12.3”)
Diameter: 20.5 cm (8.1”)
Gross Weight: 4.7kg (10.36 lb.)
Net Weight: 4.4 kg (9.7 lb.)
Rocket Weight Max: 535g (18.9 oz.)
Explosive Content Max.: 106g (3.74 oz.)
Line breaking strain: >2 kn
STANDARDS
Conforms to: BAM 0589-P2-0016 (Complete Unit), 0589-P2-0094 (Rocket only), SOLAS 74 as amended, IMO resolutions MSC. 81(70) Part 1, (MED) 96/98/EC, BGV 424. 002, USCG - and other major maritime authorities worldwide.
SOLAS requires one of these markers to be mounted on each bridge wing attached to a 4kg lifebuoy. Mounted in its steel bracket on each bridge wing...
hookdisplayProductListReviews
₦0.00
A self-contained line-throwing appliance consisting of a plastic case with an end cap and 250m of line, an integral striker mechanism plus a rocket.
To comply with SOLAS requirements, four complete rocket and line assemblies (Art. No. 9160400) should be carried on board. The device has a throwing range of between 230m and 250m. A solid propellant is used which guarantees a highly accurate flight path even in strong sidewinds.
