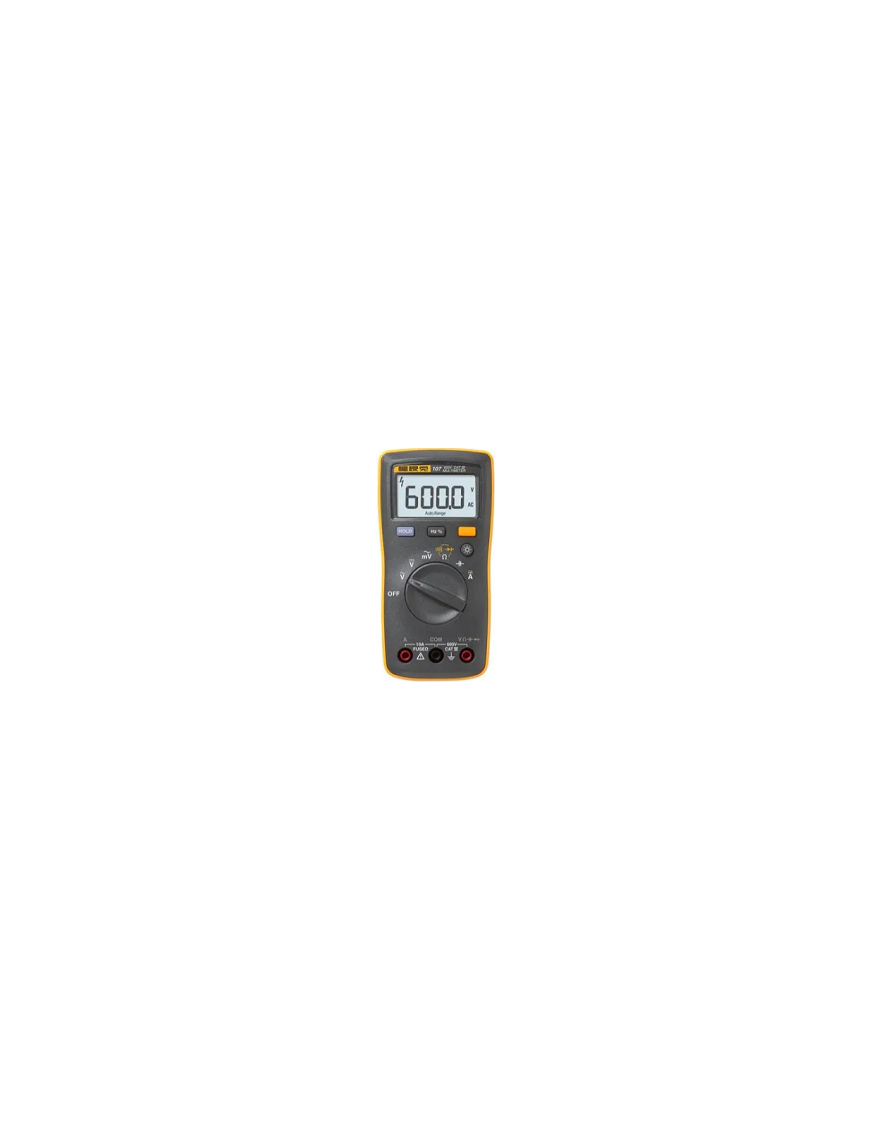

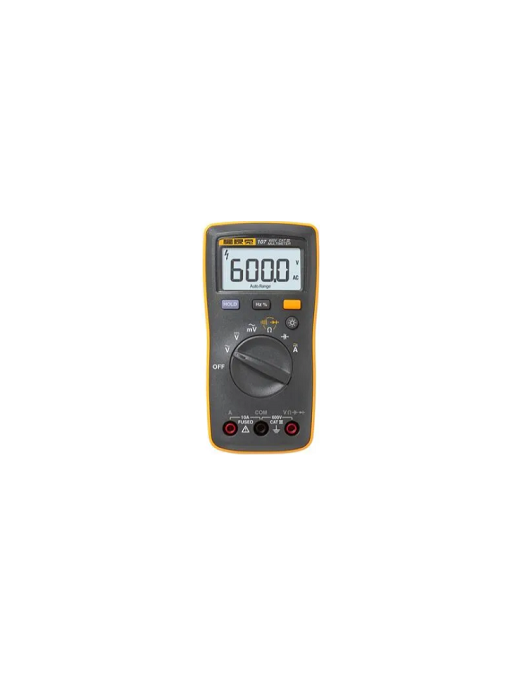

Fluke 107 Pocket Digital Multimeter

PRODUCT FEATURES

• CAT III 600 V safety rating
• Current and voltage measurements
• Measures resistance and continuity to check for broken wires
• Data hold and backlit display to keep you working safe and fast

SPECIFICATIONS

The highest voltage applied to any terminal and ground: 600 V

Display (LCD): 6000 counts, updated three times per second

Type of battery: Two AAA batteries (NEDA 24A, IEC LR03)

Battery life: At least 200 hours

Temperature

Operating temperature: 0 °C to 40 °C

Storage temperature: -30 °C to 60 °C

Relative humidity

Working humidity: No condensation below 10 °C

≤ 90 % at 10 °C to 30 °C; ≤ 75 % at 30 °C to 40 °C

Working humidity, 40 MΩ range:  ≤ 80 % at 10 °C to 30 °C; ≤ 70 % at 30 °C to 40 °C

Altitude

Working elevation: 2000 m

Storage altitude: 12,000 m

Temperature coefficient: 0.1 X (specified accuracy) / °C (<18 °C or >28 °C)

Current input fuse protection: 11A, 1000V fast-melting type, must use Fluke designated parts

Volume (height x width x length): 142 mm x 69 mm x 28 mm

Weight: 200 g

Protection level: IEC 60529: IP 40

Safety: IEC 61010-1: 600 V CAT III, pollution degree 2

Electromagnetic environment: IEC 61326-1: Portable

Electromagnetic compatibility: Applicable only in Korea. Class A equipment (industrial broadcasting and communication equipment)
