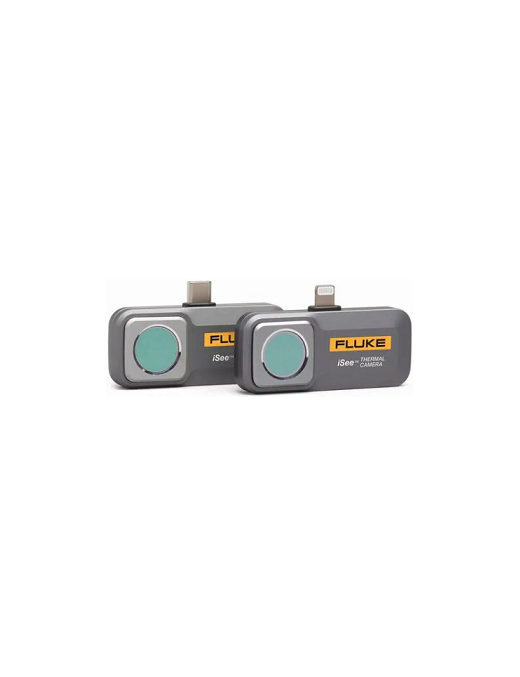

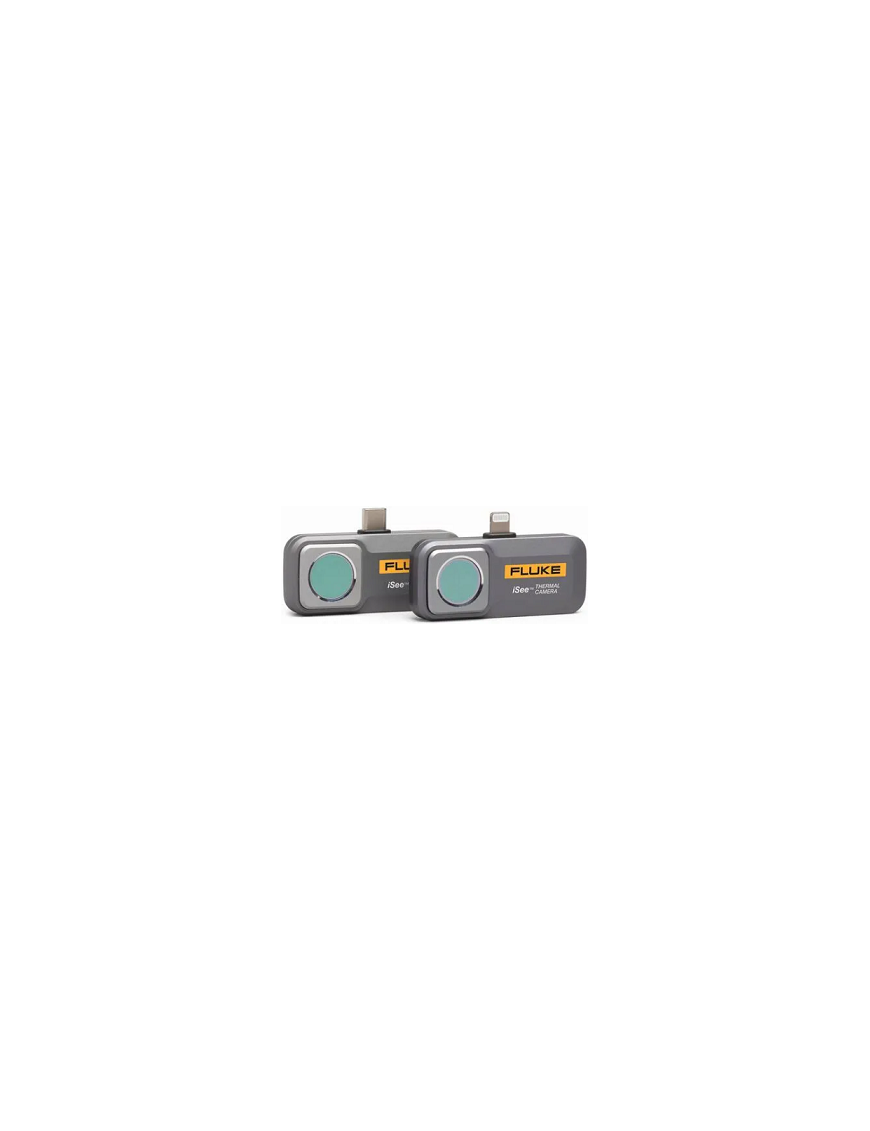

PRODUCT FEATURES
- 256 x 192 pixels, detailed image quality, and 25 Hz frame rate for smooth video recording
- Up to 550 °C (1022°F), suitable to use in many applications
- 50 mK (0.05 °C) thermal sensitivity for fine differences and ± 2% or ±2 °C accuracy to ensure reliable results
- Customize image view with more than 10 standard or custom color palettes
- Compact design as light as 22 g
Detailed image quality comparable to professional thermal imagers
- 256 x 192 pixels, detailed image quality
- -10 to 550 °C (14 to 1022 °F) range, covering wide applications
- 50 mk (0.05 °C) thermal sensitivity for fine screening
- ± 2% or ± 2 °C (3.6 °F) accuracy, reliable and stable
- 25 Hz frame rate, smooth video without lag
- More than 10 standard and custom color palettes to achieve a variety of personalized images
Full temperature range analysis
- Real-time high and low-temperature capture, without missing any details
- Adjustable emissivity to cope with different materials
- Comprehensive temperature analysis for spot, line and area, professional-grade thermal imaging software
- Real-time temperature alarm, timely response, and handling
- Unattended automatic time-lapse photography
- Infrared and visible light image comparison for locating, comparing, and archiving

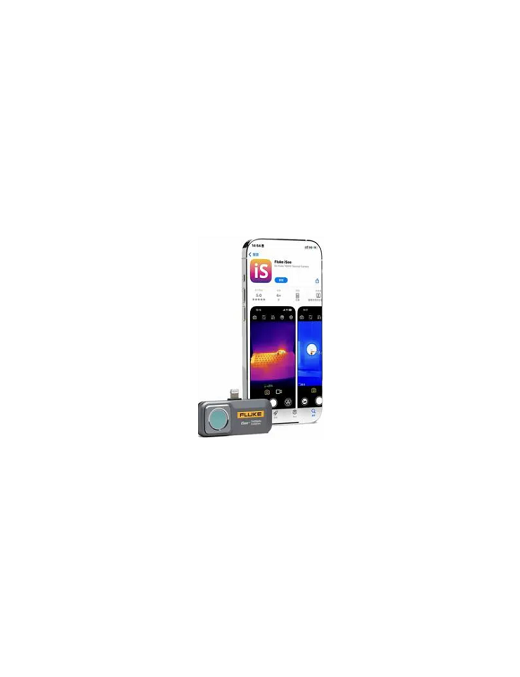

Real-time image sharing, communication without barriers
- Real-time image and video sharing and management, fast and efficient communication
- It is easy to add image annotations, and communication without barriers
SPECIFICATIONS
USB interface: Type-C, Lightning, Type-C
Compatible system: Android and HarmonyOS, iOS
Operating temperature: 0 ℃ to 40 ℃/32 °F to 104 °F
Storage temperature: -30 ℃ to 60 ℃/–22 °F to 140 °F
Operating humidity: 10 % to 90 % RH, non-condensing
Power consumption: 350 mW (Typical), 200 mW (Typical)
Drop test: 1 m/3.3 ft
Ingress protection: IEC 60529: IP54 (with the protective cover for Type C), IEC 60529: IP56
Operating altitude: 2 000 m/6 562 ft
Storage altitude: 12 000 m/39 370 ft
Dimensions (L x W x H): 60 x 33.5 x 11.2mm/2.36 x 1.32 x 0.44 in
EMC Environment
International
IEC 61326-1: Electromagnetic environment for portable equipments CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply net- work that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Korea (KCC)
Class A Equipment (Industrial Broadcasting and Communication Equipment)
Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
United States (FCC)
47 CFR 15 Subpart B. This product is considered an exempt device per clause 15.103.
Warranty: 2 years
