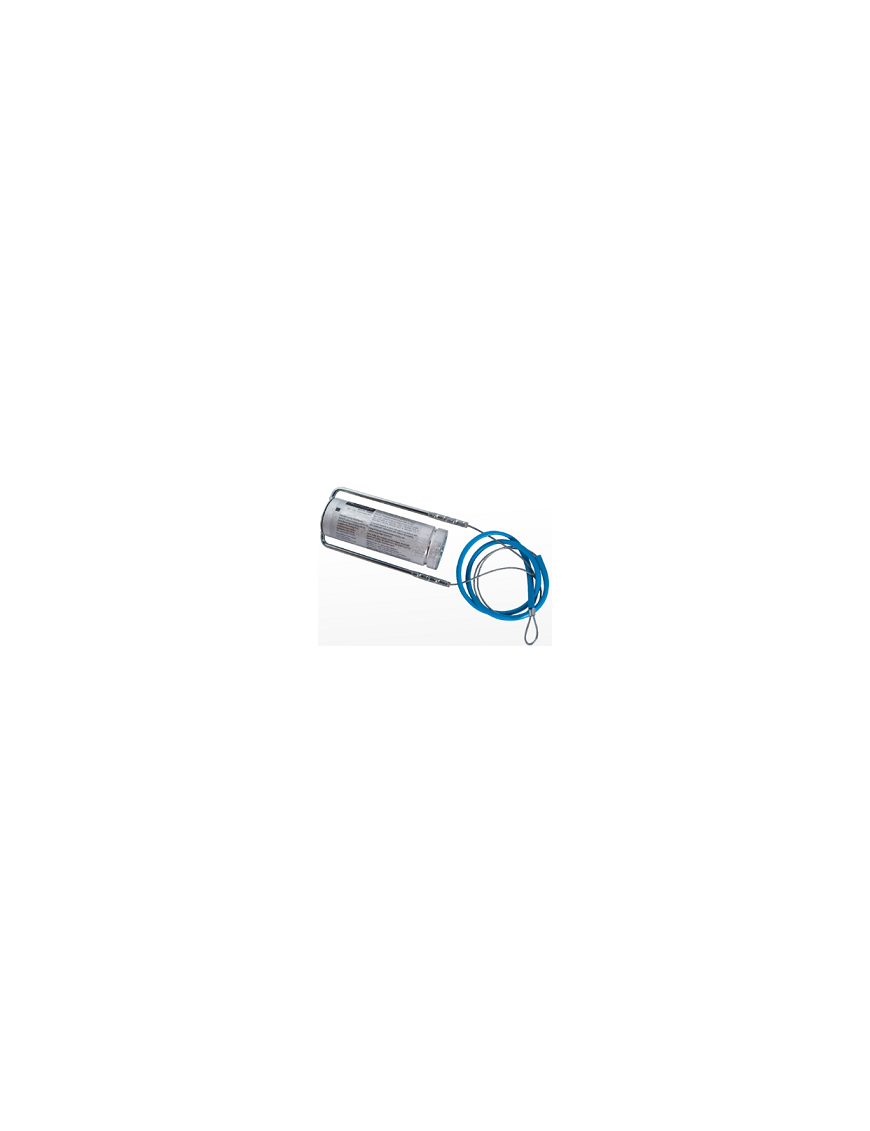

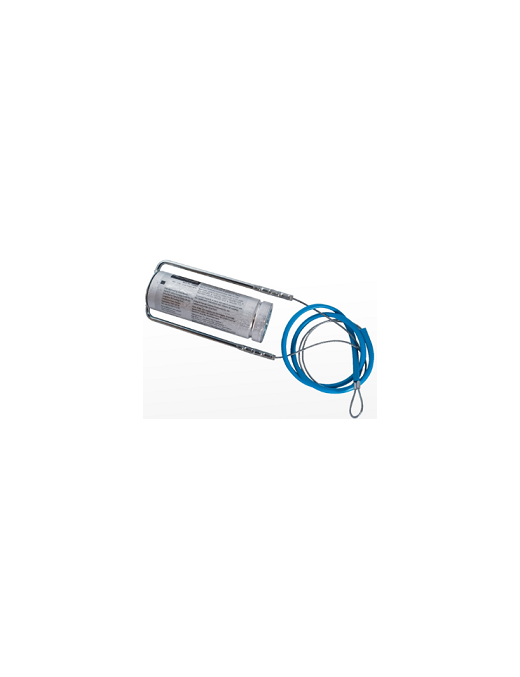

Used to pass a line from ship to ship and ship to shore and to aid swimmers in difficulties. Single shot device. Note: Never fire the rocket without a drag line attached.
Storage Requirements
Ideally should be stored in the robust, easily accessed location at ambient temperature.
Disposal
Hazardous item! Dispose of responsibly through approved channels in accordance with local regulations.
SPECIFICATIONS
Length: 33 cm (13.0 in)
Height: 31.3 cm (12.3 in)
Diameter: 20.5 cm (8.1 in)
Gross Weight: 4.7kg (10.36 lb.)
Net Weight: 4.4 kg (9.7 lb.)
Rocket Weight Max: 535g (18.9 oz.)
Explosive Content Max.: 106g (3.74 oz.)
Line breaking strain: >2 kn
STANDARDS
Conforms to: BAM 0589-P2-0016 (Complete Unit), 0589-P2-0094 (Rocket only), SOLAS 74 as amended, IMO resolutions MSC. 81(70) Part 1, (MED) 96/98/EC, BGV 424.003, USCG - and other major maritime authorities worldwide.
