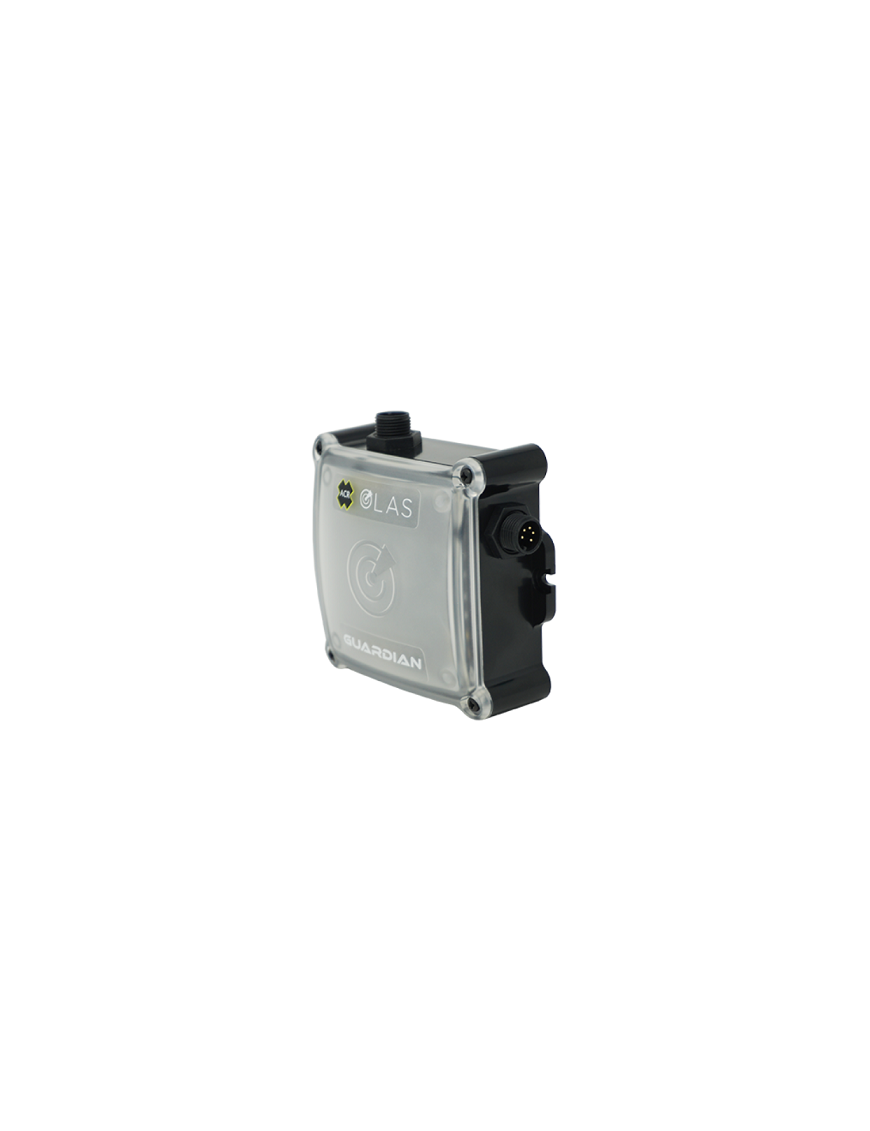

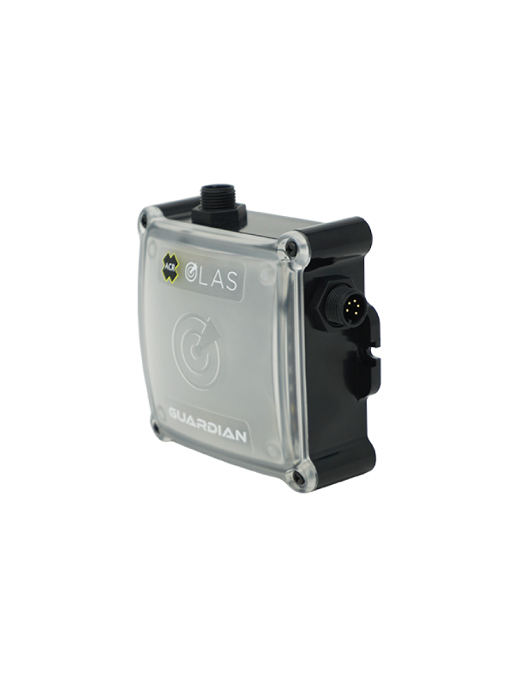

ACR OLAS GUARDIAN

PRODUCT FEATURES

• ACR OLAS Free Mobile App Integration
• Ultra-Bright Red LED Visual Alarm
• 85 dB Audible Alarm
• Pre-engine-stop warning
• Connect up to 25 ACR OLAS Transmitters
• Waterproof (IP67)
• Utilizes the latest Bluetooth® 5.0 Technology
• Expand system coverage from 50 ft. to 100 ft. using the OLAS EXTENDER
• 12/24V Wired
• Color-Coded Control Switch
• Restart engine after 7 seconds
• Driver and passenger tag allocation
• Automatic tag connection
• No connection warning  and manual override
• Pause mode
• Run alongside existing Kill switch

SPECIFICATIONS

ACR Product Number: PN 2985

Size: 3.6” (H) x 3.5” (L) x 1.5” (W)/92 (H) x 90 (L) x 38 (W) mm

Weight: 3.97 Ounces (112.5 g)

Color: Black and Clear

Operation: Press button once to turn on, all tags within 2 meters are tracked

Maximum Number of Connected OLAS transmitter: Connects up to 25 OLAS Transmitters (OLAS Tag OLAS T2 Tags and/or OLAS Float-On)

Power / Current: 10-32V / 13-17mA

Visual Alarm: Red LED / 55 Lumens

Audible Alarm: 85 Decibels

Automatic Restart: After 7 Seconds

Automatic Connection: Automatically connects to activated OLAS transmitter within a 3-meter range.

Relay Selection: Allocate transmitters to Driver and Passenger. Use the OLAS APP to select which crew members transmitters should trigger the engine cut off, or only trigger the Guardians built-in alarm.

MOB System: Track up to 25 different OLAS transmitters with 1 phone/tablet when connected to the Guardian.

The ALARM sounds within 2 seconds of a Man Overboard situation and shuts off the boat’s engines.  The system records the MOB location using your phone/tablets GPS and directs the boat back to the last known location for a quick and easy recovery.

Compatible with the ACR OLAS Extender, Mobile App, Float-On, OLAS T2 and Tag.

Mobile App

• IOS and Android (Free Download)
• Connect up to 6  OLAS transmitters to 1 phone or tablet
• Solo Mode (Text Message Alerts to Emergency Contacts with GPS coordinates)
• Download the ACR OLAS App on the App store or get it on Google Play: Search ‘ACR OLAS’

Range: For use with vessels up to 50 feet (12 meters)., Extend the coverage range on larger vessels with the ACR OLAS EXTENDERS for coverage on boats up to 100 feet.

Scalability: Upgrade your system with the ACR OLAS Extender (extends range of your MOB system from a vessel size of 50 ft up to 100 ft).

Buoyant: No

Waterproof: Yes (IP67)

Housing Material: ABS

Fuse: 1-3 Amp fuse recommended (not supplied)

Bluetooth®: 4.2 + 5.0

Applications: Recreational and Commercial Boating

Accessories (included): ACR OLAS Tag, Power Connection Cable, Kill Switch Cord Connector, and Stainless Steel Control Switch

Warranty: 2 Years

Approvals: FCC, RED, CE, RoHS 2.0
