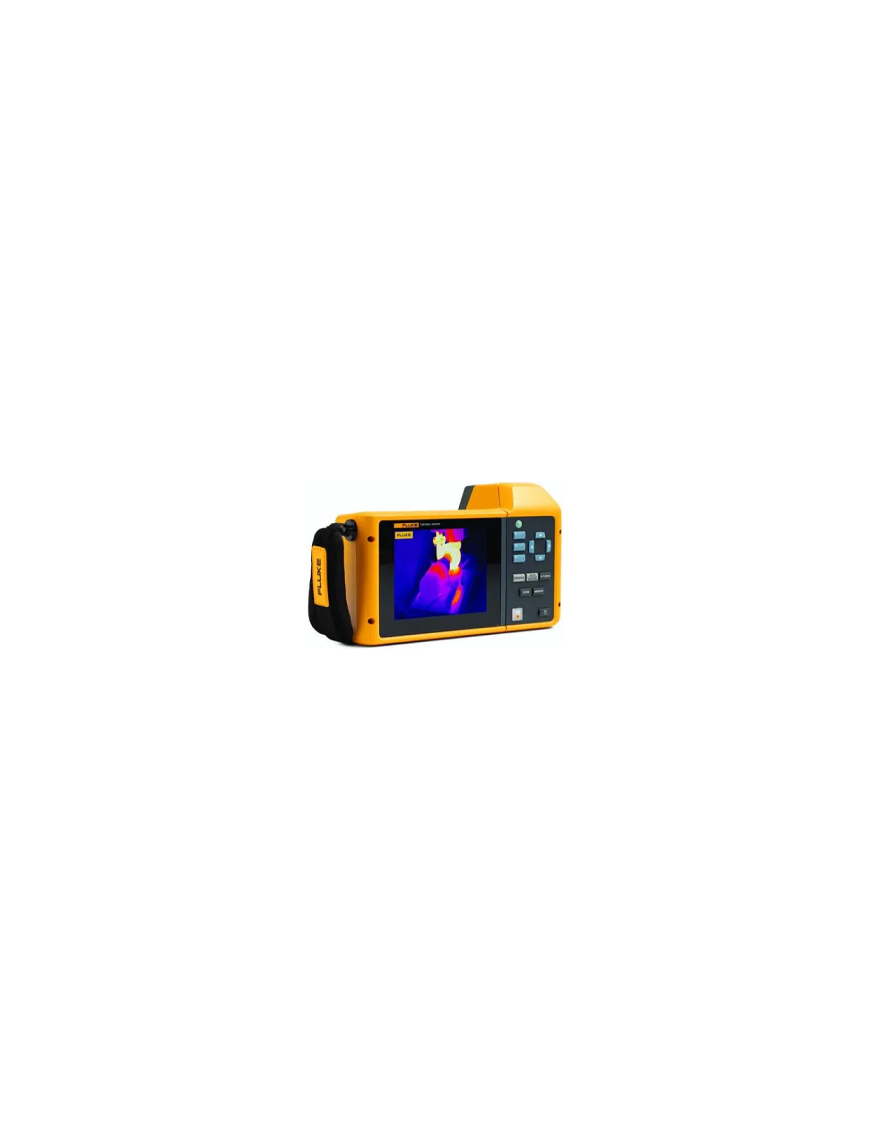

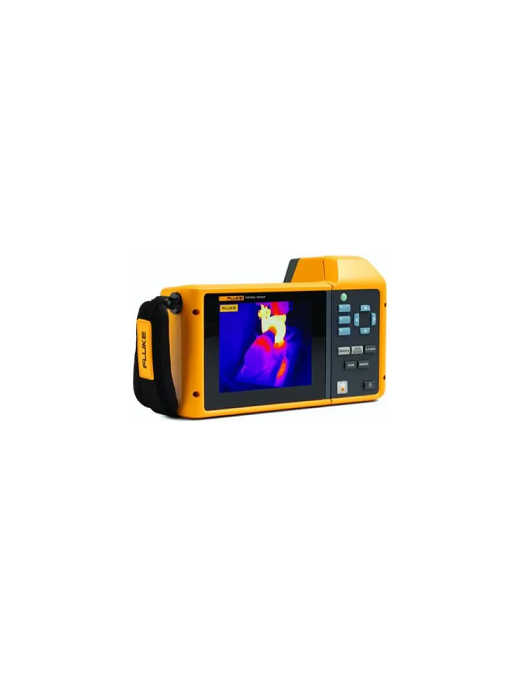

Fluke TiX580 Infrared Camera

PRODUCT FEATURES

• Rugged, superbly engineered 640 x 480 thermal imaging camera
• Provides large 5.7-inch responsive LCD touchscreen with 150% more viewing area than 3.5-inch screen
• Features 240° rotating screen for unmatched shooting flexibility
• Provides 4x the pixel data with on-camera SuperResolution to create a 1280 x 960 resolution image
• Subject to Export Control

SPECIFICATIONS

Frame rate: 60 Hz or 9 Hz versions

Laser pointer: Yes

LED light (torch): Yes

Color alarms (temperature alarms): High temperature, low temperature, and isotherms (within range)

Center-point temperature measurement: Yes

Spot temperature: Hot and cold spot markers

User-definable spot markers: 3 user-definable spot markers

Center box: Expandable-contractible measurement box with MIN-MAX-AVG temp display

Infrared spectral band: 7.5 μm to 14 μm (long wave)

Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)

Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F)

Relative humidity: 10% to 95% non-condensing

Safety: IEC 61010-1: Overvoltage category II, Pollution Degree 2

Electromagnetic compatibility: IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A

Australian RCM: IEC 61326-1

US FCC: CFR 47, Part 15 Subpart B

Vibration: 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6

Shock: 25 g, IEC 60068-2-29

Drop: 25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens

Size (H x W x L) : 27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in)

Weight (battery included): 1.54 kg (3.4 lb)

Enclosure rating: IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)

Warranty: Two-years (standard), extended warranties are available

Recommended calibration cycle: Two-years (assumes normal operation and normal aging)

Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
